Dorman 986-685 Drive Shaft
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$448.54
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
Product Description

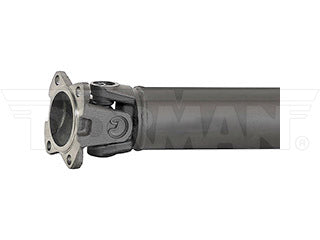

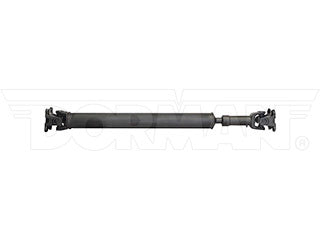

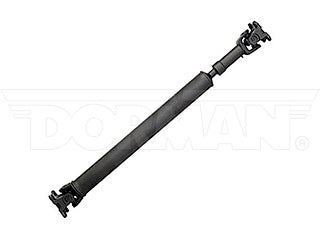

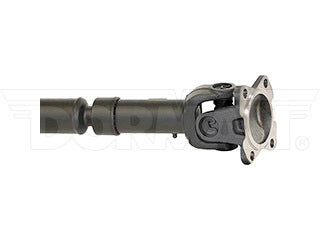

Replacing a drive shaft doesn't have to be complicated. This complete drive shaft assembly is pre-balanced and ready to install with 100% new yokes, tubes, constant velocity (CV) joints and universal joints.
- Direct replacement - this drive shaft is made to the original equipment dimensions for dependable fit and performance
- 100% new - this drive shaft is made from all new components so there's no core charge or return hassle
- Ready to install - this drive shaft arrives pre-balanced to make installation quick and simple
- Serviceable construction - non-staked universal joints are designed for future serviceability
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2002 | Isuzu | Rodeo Sport | 4WD; V6 3.2L (3165cc); Automatic Trans. | Rear | |
| 2001 | Isuzu | Rodeo Sport | 4WD; V6 3.2L (3165cc); Automatic Trans. | Rear | |
| 2000 | Isuzu | Amigo | 4WD; V6 3.2L (3165cc); Automatic Trans. | Rear | |
| 1999 | Isuzu | Amigo | 4WD; V6 3.2L (3165cc); Automatic Trans. | Rear | |
| 1998 | Isuzu | Amigo | 4WD; V6 3.2L (3165cc); Automatic Trans. | Rear |
Product Specifications
| Axle Nut Included: | No |
|---|---|
| Collapsed Length (Flange Face To Flange Face): | 33.25 in |
| Compressed Length: | 33.25 in |
| CV Joints Included: | No |
| Drive Shaft Length (In): | 34.625 in |
| Drive Shaft Wall Thickness (In): | 0.083 in |
| End 1 Type: | Bolt On |
| End 2 Type: | Bolt On |
| Grade Type: | Regular |
| Grease Fitting Included: | Yes |
| Greaseable Drive Shaft: | No |
| Max Slip: | 2.875 in |
| Multi Piece Shaft: | 0 deg |
| Overall Length Adjustable: | No |
| Package Contents: | 1 Driveshaft |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Phase Degrees: | 0 deg |
| Phased: | Yes |
| Pre-Greased: | Yes |
| Shaft Diameter: | 2.5 in |
| Shaft Material: | Steel |
| Slip Yoke: | Yes |
| Universal Joints Included: | Yes |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 8972014540 | ISUZU |
| 8972321720 | ISUZU |
| 8972321723 | ISUZU |
