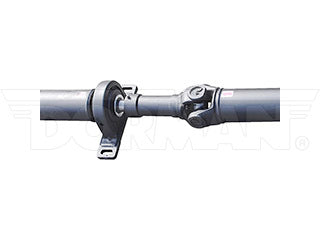

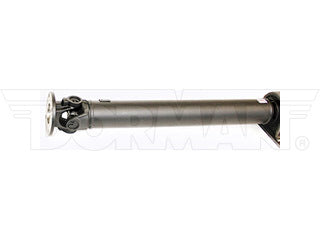

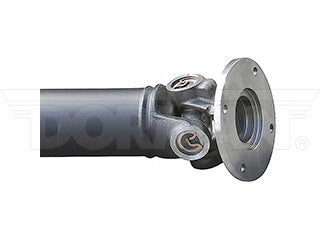

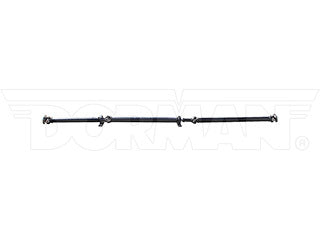

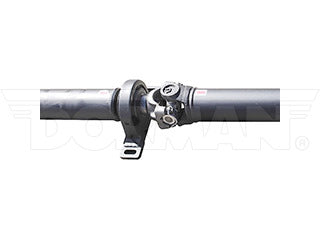

Dorman 986-751 Drive Shaft
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$737.99
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
Product Description
Replacing a drive shaft doesn't have to be complicated. This complete drive shaft assembly is pre-balanced and ready to install with 100% new yokes, tubes, constant velocity (CV) joints and universal joints.
- Direct replacement - this drive shaft is made to the original equipment dimensions for dependable fit and performance
- 100% new - this drive shaft is made from all new components so there's no core charge or return hassle
- Ready to install - this drive shaft arrives pre-balanced to make installation quick and simple
- Serviceable construction - non-staked universal joints are designed for future serviceability
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2018 | Freightliner | Sprinter 2500 | 4WD; V6 3.0L (2987cc); Automatic Trans.; 170.0 Inch Wheelbase | Rear | 3 Piece Shaft Assembly |
| 2018 | Freightliner | Sprinter 3500 | 4WD; V6 3.0L (2987cc); Automatic Trans.; 170.0 Inch Wheelbase | Rear | 3 Piece Shaft Assembly |
| 2018 | Mercedes-Benz | Sprinter 2500 | 4WD; V6 3.0L (2987cc); Automatic Trans.; 170.0 Inch Wheelbase | Rear | 3 Piece Shaft Assembly |
| 2018 | Mercedes-Benz | Sprinter 3500 | 4WD; V6 3.0L (2987cc); Automatic Trans.; 170.0 Inch Wheelbase | Rear | 3 Piece Shaft Assembly |
| 2017 | Freightliner | Sprinter 2500 | 4WD; V6 3.0L (2987cc); Automatic Trans.; 170.0 Inch Wheelbase | Rear | 3 Piece Shaft Assembly |
| 2017 | Freightliner | Sprinter 3500 | 4WD; V6 3.0L (2987cc); Automatic Trans.; 170.0 Inch Wheelbase | Rear | 3 Piece Shaft Assembly |
| 2017 | Mercedes-Benz | Sprinter 2500 | 4WD; V6 3.0L (2987cc); Automatic Trans.; 170.0 Inch Wheelbase | Rear | 3 Piece Shaft Assembly |
| 2017 | Mercedes-Benz | Sprinter 3500 | 4WD; V6 3.0L (2987cc); Automatic Trans.; 170.0 Inch Wheelbase | Rear | 3 Piece Shaft Assembly |
| 2016 | Freightliner | Sprinter 2500 | 4WD; V6 3.0L (2987cc); Automatic Trans.; 170.0 Inch Wheelbase | Rear | 3 Piece Shaft Assembly |
| 2016 | Freightliner | Sprinter 3500 | 4WD; V6 3.0L (2987cc); Automatic Trans.; 170.0 Inch Wheelbase | Rear | 3 Piece Shaft Assembly |
| 2016 | Mercedes-Benz | Sprinter 2500 | 4WD; V6 3.0L (2987cc); Automatic Trans.; 170.0 Inch Wheelbase | Rear | 3 Piece Shaft Assembly |
| 2016 | Mercedes-Benz | Sprinter 3500 | 4WD; V6 3.0L (2987cc); Automatic Trans.; 170.0 Inch Wheelbase | Rear | 3 Piece Shaft Assembly |
| 2015 | Freightliner | Sprinter 2500 | 4WD; V6 3.0L (2987cc); Automatic Trans.; 170.0 Inch Wheelbase | Rear | 3 Piece Shaft Assembly |
| 2015 | Freightliner | Sprinter 3500 | 4WD; V6 3.0L (2987cc); Automatic Trans.; 170.0 Inch Wheelbase | Rear | 3 Piece Shaft Assembly |
| 2015 | Mercedes-Benz | Sprinter 2500 | 4WD; V6 3.0L (2987cc); Automatic Trans.; 170.0 Inch Wheelbase | Rear | 3 Piece Shaft Assembly |
| 2015 | Mercedes-Benz | Sprinter 3500 | 4WD; V6 3.0L (2987cc); Automatic Trans.; 170.0 Inch Wheelbase | Rear | 3 Piece Shaft Assembly |
Product Specifications
| Axle Nut Included: | No |
|---|---|
| Collapsed Length (Flange Face To Flange Face): | 120.9 in |
| Collapsed Length (Yoke To Bearing): | 28.1 in |
| Collapsed Length (Yoke To Flange Face): | 120.9 in |
| Compressed Length: | 120.9 in |
| CV Joints Included: | No |
| Drive Shaft Length (In): | 122.4 in |
| Drive Shaft Wall Thickness (In): | 0.83 in |
| End 1 Type: | Bolt On |
| End 2 Type: | Bolt On |
| Grade Type: | Regular |
| Grease Fitting Included: | Yes |
| Greaseable Drive Shaft: | No |
| Max Slip: | 3 in |
| Multi Piece Shaft: | Yes |
| Overall Length Adjustable: | Yes |
| Package Contents: | 1 Driveshaft |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Phase Degrees: | 90 deg |
| Phased: | Yes |
| Pre-Greased: | Yes |
| Shaft Diameter: | 3.5 in |
| Shaft Material: | Steel |
| Slip Yoke: | No |
| Universal Joints Included: | Yes |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 9064101401 | FREIGHTLINER |
| 9064101401 | MERCEDES-BENZ |
| 9064104001 | FREIGHTLINER |
| 9064104001 | MERCEDES-BENZ |
| 9064107716 | FREIGHTLINER |
| 9064107716 | MERCEDES-BENZ |
