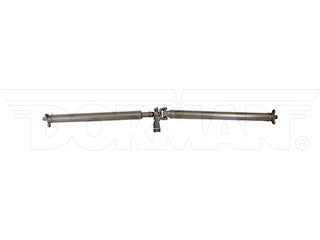

Product Description
Replacing a drive shaft doesn't have to be complicated. This complete drive shaft assembly is pre-balanced and ready to install with 100% new yokes, tubes, constant velocity (CV) joints and universal joints.
- Direct replacement - this drive shaft is made to the original equipment dimensions for dependable fit and performance
- 100% new - this drive shaft is made from all new components so there's no core charge or return hassle
- Ready to install - this drive shaft arrives pre-balanced to make installation quick and simple
- Serviceable construction - non-staked universal joints are designed for future serviceability
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2005 | Mercedes-Benz | E500 | RWD; Automatic Trans.; 5 Speed Trans. | Rear | |
| 2004 | Mercedes-Benz | E500 | RWD; Automatic Trans.; 5 Speed Trans. | Rear | |
| 2003 | Mercedes-Benz | E500 | RWD; Automatic Trans.; 5 Speed Trans. | Rear | |
| 2002 | Mercedes-Benz | E500 (Mexico) | RWD; Automatic Trans.; 5 Speed Trans. | Rear |
Product Specifications
| Axle Nut Included: | No |
|---|---|
| Collapsed Length (Flange Face To Flange Face): | 64.625 in |
| Collapsed Length (Yoke To Bearing): | 29.25 in |
| Collapsed Length (Yoke To Flange Face): | 64.625 in |
| Compressed Length: | 64.625 in |
| CV Joints Included: | No |
| Drive Shaft Length (In): | 65.625 in |
| Drive Shaft Wall Thickness (In): | 0.083 in |
| End 1 Type: | Bolt On |
| End 2 Type: | Bolt On |
| Grade Type: | Regular |
| Grease Fitting Included: | No |
| Greaseable Drive Shaft: | No |
| Max Slip: | 1 in |
| Multi Piece Shaft: | Yes |
| Overall Length Adjustable: | Yes |
| Package Contents: | 1 Driveshaft |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Phased: | No |
| Pre-Greased: | Yes |
| Shaft Diameter: | 2.5 in |
| Shaft Material: | Steel |
| Slip Yoke: | No |
| Universal Joints Included: | Yes |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 2114100406 | MERCEDES-BENZ |
