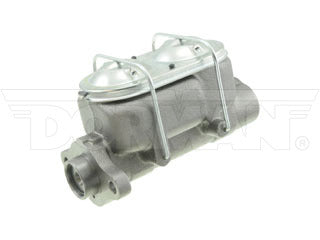

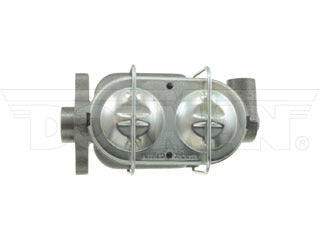

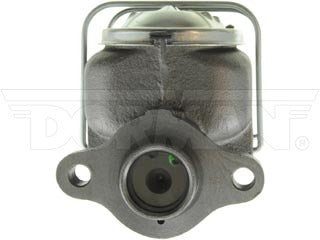

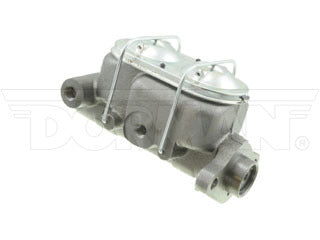

Dorman M101266 Master Cylinder
Regular price
$34.04
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 1984 | Chevrolet | P20 | Power Brakes; GAS | Bore: 1.25 In.; 13 In. Brakes | |
| 1984 | GMC | P2500 | Power Brakes; GAS | Bore: 1.25 In.; 13 In. Brakes | |
| 1983 | Chevrolet | G30 | Power Brakes | w/Single Rear Wheel (SRW); Bore: 1.25 In. | |
| 1983 | Chevrolet | P20 | Power Brakes; GAS | Bore: 1.25 In.; 13 In. Brakes | |
| 1983 | GMC | G3500 | Power Brakes | w/Single Rear Wheel (SRW); Bore: 1.25 In. | |
| 1983 | GMC | P2500 | Power Brakes; GAS | Bore: 1.25 In.; 13 In. Brakes | |
| 1982 | Chevrolet | G30 | Power Brakes | w/Single Rear Wheel (SRW); Bore: 1.25 In. | |
| 1982 | Chevrolet | P20 | Power Brakes; GAS | Bore: 1.25 In.; 13 In. Brakes | |
| 1982 | GMC | G3500 | Power Brakes | w/Single Rear Wheel (SRW); Bore: 1.25 In. | |
| 1982 | GMC | P2500 | Power Brakes; GAS | Bore: 1.25 In.; 13 In. Brakes | |
| 1981 | Chevrolet | G30 | Power Brakes | w/Single Rear Wheel (SRW); Bore: 1.25 In. | |
| 1981 | Chevrolet | P20 | Power Brakes | Bore: 1.25 In.; 13 In. Brakes | |
| 1981 | Chevrolet | P30 | Power Brakes; Rear Drum Brakes | 7,600 to 8,200 Lb. GVW; Bore: 1.25 In.; wo/Motorhome Chassis | |
| 1981 | GMC | G3500 | Power Brakes | w/Single Rear Wheel (SRW); Bore: 1.25 In. | |
| 1981 | GMC | P2500 | Power Brakes | Bore: 1.25 In.; 13 In. Brakes | |
| 1981 | GMC | P3500 | Power Brakes; Rear Drum Brakes | 7,600 to 8,200 Lb. GVW; Bore: 1.25 In.; wo/Motorhome Chassis | |
| 1980 | Chevrolet | C20 | Power Brakes | Bore: 1.25 In.; 13 In. Brakes | |
| 1980 | Chevrolet | C20 Suburban | Power Brakes | Bore: 1.25 In.; 13 In. Brakes | |
| 1980 | Chevrolet | C30 | Power Brakes | 6,600 to 8,200 Lb. GVW; Bore: 1.25 In. | |
| 1980 | Chevrolet | G30 | Power Brakes | 7,700 to 8,400 Lb. GVW; Bore: 1.25 In. | |
| 1980 | Chevrolet | K20 | Power Brakes | Bore: 1.25 In.; 13 In. Brakes | |
| 1980 | Chevrolet | K20 Suburban | Power Brakes | Bore: 1.25 In.; 13 In. Brakes | |
| 1980 | Chevrolet | P20 | Power Brakes | Bore: 1.25 In.; 13 In. Brakes | |
| 1980 | Chevrolet | P30 | Power Brakes; Rear Drum Brakes | 7,600 to 8,200 Lb. GVW; Bore: 1.25 In.; wo/Motorhome Chassis | |
| 1980 | GMC | C2500 | Power Brakes | Bore: 1.25 In.; 13 In. Brakes | |
| 1980 | GMC | C2500 Suburban | Power Brakes | Bore: 1.25 In.; 13 In. Brakes | |
| 1980 | GMC | G3500 | Power Brakes | 7,700 to 8,400 Lb. GVW; Bore: 1.25 In. | |
| 1980 | GMC | K2500 | Power Brakes | Bore: 1.25 In.; 13 In. Brakes | |
| 1980 | GMC | K2500 Suburban | Power Brakes | Bore: 1.25 In.; 13 In. Brakes | |
| 1980 | GMC | P2500 | Power Brakes | Bore: 1.25 In.; 13 In. Brakes | |
| 1980 | GMC | P3500 | Power Brakes; Rear Drum Brakes | 7,600 to 8,200 Lb. GVW; Bore: 1.25 In.; wo/Motorhome Chassis | |
| 1979 | Chevrolet | C20 | Power Brakes | Bore: 1.25 In.; 13 In. Brakes | |
| 1979 | Chevrolet | C20 Suburban | Power Brakes | Bore: 1.25 In.; 13 In. Brakes | |
| 1979 | Chevrolet | C30 | Power Brakes | 6,600 to 8,200 Lb. GVW; Bore: 1.25 In. | |
| 1979 | Chevrolet | G30 | Power Brakes | 7,700 to 8,400 Lb. GVW; Bore: 1.25 In. | |
| 1979 | Chevrolet | K20 | Power Brakes | Bore: 1.25 In.; 13 In. Brakes | |
| 1979 | Chevrolet | K20 Suburban | Power Brakes | Bore: 1.25 In.; 13 In. Brakes | |
| 1979 | Chevrolet | P20 | Power Brakes | Bore: 1.25 In.; 13 In. Brakes | |
| 1979 | Chevrolet | P30 | Power Brakes; Rear Drum Brakes | 7,600 to 8,200 Lb. GVW; Bore: 1.25 In.; wo/Motorhome Chassis | |
| 1979 | GMC | C2500 | Power Brakes | Bore: 1.25 In.; 13 In. Brakes | |
| 1979 | GMC | C2500 Suburban | Power Brakes | Bore: 1.25 In.; 13 In. Brakes | |
| 1979 | GMC | G3500 | Power Brakes | 7,700 to 8,400 Lb. GVW; Bore: 1.25 In. | |
| 1979 | GMC | K2500 | Power Brakes | Bore: 1.25 In.; 13 In. Brakes | |
| 1979 | GMC | K2500 Suburban | Power Brakes | Bore: 1.25 In.; 13 In. Brakes | |
| 1979 | GMC | P2500 | Power Brakes | Bore: 1.25 In.; 13 In. Brakes | |
| 1979 | GMC | P3500 | Power Brakes; Rear Drum Brakes | 7,600 to 8,200 Lb. GVW; Bore: 1.25 In.; wo/Motorhome Chassis | |
| 1978 | Chevrolet | C30 | Power Brakes | 6,600 to 8,200 Lb. GVW; Bore: 1.25 In. | |
| 1978 | Chevrolet | G30 | Power Brakes | 7,700 to 8,400 Lb. GVW; Bore: 1.25 In. | |
| 1978 | Chevrolet | P30 | Power Brakes; Rear Drum Brakes | 7,600 to 8,200 Lb. GVW; Bore: 1.25 In.; wo/Motorhome Chassis | |
| 1978 | GMC | C35 | Power Brakes | 6,600 to 8,200 Lb. GVW; Bore: 1.25 In. |
Product Specifications
| Master Cylinder Bore Diameter: | 1.25 in |
|---|---|
| Master Cylinder Material: | Cast Iron |
| Mounting Hardware Included: | No |
| Number of Outlets: | 2 |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Rearward Outlet Size: | 1/2-20 |
| Reservoir Included: | Yes |
| Sensor Included: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 18002458 | GENERAL MOTORS |
| 18005215 | GENERAL MOTORS |
| 18008633 | GENERAL MOTORS |
| 2623214 | GENERAL MOTORS |
| 5472452 | GENERAL MOTORS |
| 5474229 | GENERAL MOTORS |
