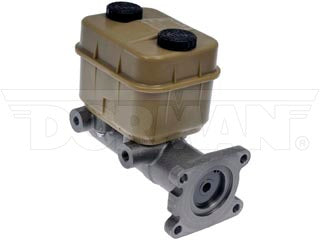

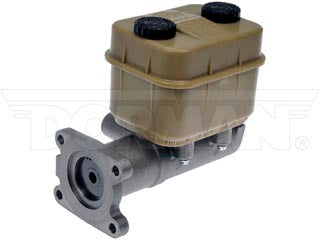

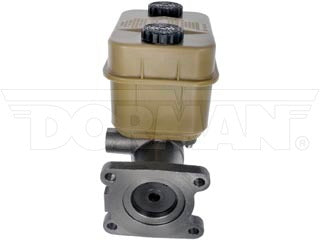

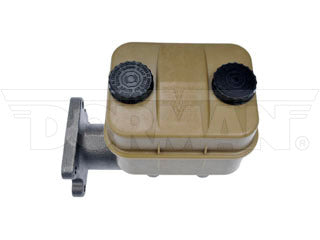

Dorman M12671 Master Cylinder
Regular price
$351.13
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2003 | GMC | T6 | Bore: 2 In. | ||
| 2003 | GMC | T7 | Bore: 2 In. | ||
| 2003 | Isuzu | FTR | Bore: 2 In.; wo/RPO Code JE3 (4 Wheel ABS) | ||
| 2003 | Isuzu | FVR | Bore: 2 In.; wo/RPO Code JE3 (4 Wheel ABS) | ||
| 2002 | Chevrolet | B7 | Bore: 2 In. | ||
| 2002 | Chevrolet | C6500 Kodiak | Bore: 2 In. | ||
| 2002 | Chevrolet | C7500 Kodiak | Bore: 2 In. | ||
| 2002 | Chevrolet | T6500 | Bore: 2 In. | ||
| 2002 | Chevrolet | T7500 | Bore: 2 In. | ||
| 2002 | GMC | B7 | Bore: 2 In. | ||
| 2002 | GMC | C6500 Topkick | Bore: 2 In. | ||
| 2002 | GMC | C7500 Topkick | Bore: 2 In. | ||
| 2002 | GMC | T6500 | Bore: 2 In. | ||
| 2002 | GMC | T7500 | Bore: 2 In. | ||
| 2002 | Isuzu | FSR | Bore: 2 In. | ||
| 2002 | Isuzu | FTR | Bore: 2 In.; wo/RPO Code JE3 (4 Wheel ABS) | ||
| 2002 | Isuzu | FVR | Bore: 2 In.; wo/RPO Code JE3 (4 Wheel ABS) | ||
| 2001 | Chevrolet | B7 | Bore: 2 In. | ||
| 2001 | Chevrolet | C6500 Kodiak | Bore: 2 In. | ||
| 2001 | Chevrolet | C7500 Kodiak | Bore: 2 In. | ||
| 2001 | Chevrolet | T6500 | Bore: 2 In. | ||
| 2001 | Chevrolet | T7500 | Bore: 2 In. | ||
| 2001 | GMC | B7 | Bore: 2 In. | ||
| 2001 | GMC | C6500 Topkick | Bore: 2 In. | ||
| 2001 | GMC | C7500 Topkick | Bore: 2 In. | ||
| 2001 | GMC | T6500 | Bore: 2 In. | ||
| 2001 | GMC | T7500 | Bore: 2 In. | ||
| 2001 | Isuzu | FSR | Bore: 2 In. | ||
| 2001 | Isuzu | FTR | Bore: 2 In. | ||
| 2001 | Isuzu | FVR | Bore: 2 In. | ||
| 2000 | Chevrolet | B7 | Bore: 2 In. | ||
| 2000 | Chevrolet | C6500 Kodiak | Bore: 2 In. | ||
| 2000 | Chevrolet | C7500 Kodiak | Bore: 2 In. | ||
| 2000 | Chevrolet | T6500 | Bore: 2 In. | ||
| 2000 | Chevrolet | T7500 | Bore: 2 In. | ||
| 2000 | GMC | B7 | Bore: 2 In. | ||
| 2000 | GMC | B7500 | Bore: 2 In. | ||
| 2000 | GMC | C6500 Topkick | Bore: 2 In. | ||
| 2000 | GMC | C7500 Topkick | Bore: 2 In. | ||
| 2000 | GMC | T6500 | Bore: 2 In. | ||
| 2000 | GMC | T7500 | Bore: 2 In. | ||
| 2000 | Isuzu | FSR | Bore: 2 In. | ||
| 2000 | Isuzu | FTR | Bore: 2 In. | ||
| 2000 | Isuzu | FVR | Bore: 2 In. | ||
| 1999 | Chevrolet | B7 | Bore: 2 In. | ||
| 1999 | Chevrolet | C6500 Kodiak | Bore: 2 In. | ||
| 1999 | Chevrolet | C7500 Kodiak | Bore: 2 In. | ||
| 1999 | Chevrolet | T6500 | Bore: 2 In. | ||
| 1999 | Chevrolet | T7500 | Bore: 2 In. | ||
| 1999 | GMC | B7 | Bore: 2 In. |
Product Specifications
| Master Cylinder Bore Diameter: | 2 in |
|---|---|
| Master Cylinder Material: | Cast Iron |
| Mounting Hardware Included: | No |
| Number of Outlets: | 2 |
| Package Contents: | 1 Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Reservoir Included: | Yes |
| Secondary Outlet Thread Diameter: | 1/2-20 |
| Sensor Included: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 15716128 | GENERAL MOTORS |
| 19301987 | GENERAL MOTORS |
| 8-15716-128-0 | ISUZU |
| 8-19301-987-0 | ISUZU |
