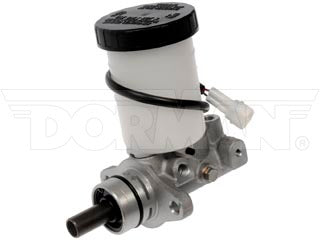

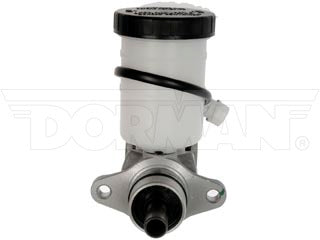

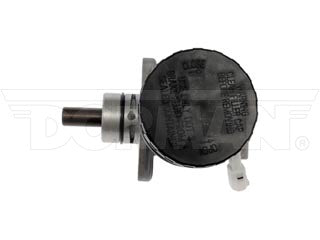

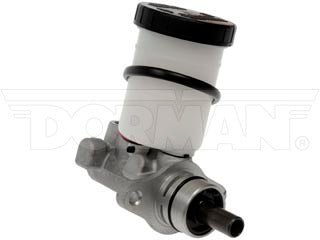

Dorman M390326 Master Cylinder
Regular price
$109.10
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 1998 | Chevrolet | Tracker | 2 Door; 4-Wheel ABS | Bore: 15/16 In. | |
| 1998 | Chevrolet | Tracker | 4 Door; 4-Wheel ABS | Bore: 15/16 In. | |
| 1998 | Suzuki | Sidekick | 4-Wheel ABS; L4 97 1.6L (1590cc) | Bore: 15/16 In. | |
| 1998 | Suzuki | X-90 | 4-Wheel ABS | Bore: 15/16 In. | |
| 1997 | Geo | Tracker | 2 Door; 4-Wheel ABS | Bore: 15/16 In. | |
| 1997 | Geo | Tracker | 4 Door; 4-Wheel ABS | Bore: 15/16 In. | |
| 1997 | Suzuki | Sidekick | 4-Wheel ABS; L4 97 1.6L (1590cc) | Bore: 15/16 In. | |
| 1997 | Suzuki | X-90 | 4-Wheel ABS | Bore: 15/16 In. | |
| 1996 | Geo | Tracker | 2 Door; 4-Wheel ABS | Bore: 15/16 In. | |
| 1996 | Geo | Tracker | 4 Door; 4-Wheel ABS | Bore: 15/16 In. | |
| 1996 | Suzuki | Sidekick | 4-Wheel ABS; L4 97 1.6L (1590cc) | Bore: 15/16 In. | |
| 1996 | Suzuki | X-90 | Bore: 15/16 In. |
Product Specifications
| Master Cylinder Bore Diameter: | 0.938 in |
|---|---|
| Master Cylinder Material: | Aluminum |
| Mounting Hardware Included: | No |
| Number of Outlets: | 2 |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Primary Outlet Thread Pitch: | 1 mm |
| Rearward Outlet Size: | M10 X 1.0 |
| Reservoir Included: | Yes |
| Secondary Outlet Thread Diameter: | M10 X 1.0 |
| Sensor Included: | Yes |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 51100-57BE0 | SUZUKI |
| 91172908 | GENERAL MOTORS |
| NON-DIRECT OE CROSS | |
|---|---|
| 51100-57B50 | SUZUKI |
