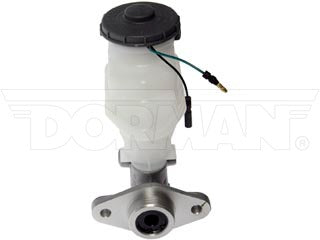

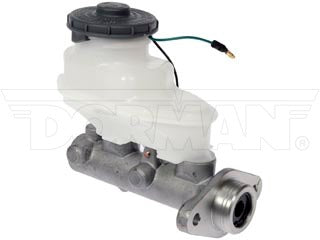

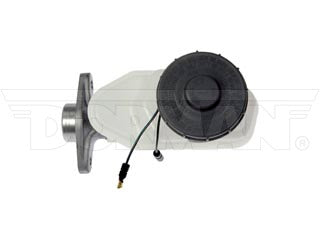

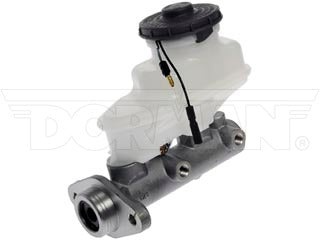

Dorman M390418 Master Cylinder
Regular price
$69.54
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2003 | Acura | CL | Type-S Submodel | Bore: 1 In. | |
| 2003 | Acura | TL | Type-S Submodel | Bore: 1 In. | |
| 2002 | Acura | CL | Type-S Submodel | Bore: 1 In. | |
| 2002 | Acura | TL | Type-S Submodel | Bore: 1 In. | |
| 2002 | Honda | Accord | 4-Wheel ABS; L4 2.3L (2254cc) | Bore: 1 In. | |
| 2001 | Acura | CL | Type-S Submodel | Bore: 1 In. | |
| 2001 | Honda | Accord | 4-Wheel ABS; L4 2.3L (2254cc) | Bore: 1 In. | |
| 2000 | Honda | Accord | 4-Wheel ABS | Bore: 1 In. | |
| 1999 | Acura | CL | Bore: 1 In. | ||
| 1999 | Honda | Accord | 4-Wheel ABS | Bore: 1 In. | |
| 1999 | Isuzu | Oasis | Bore: 1 In. | ||
| 1998 | Acura | CL | Bore: 1 In. | ||
| 1998 | Honda | Accord | 4-Wheel ABS | Bore: 1 In. | |
| 1998 | Honda | Odyssey | Bore: 1 In. | ||
| 1998 | Isuzu | Oasis | Bore: 1 In. |
Product Specifications
| Master Cylinder Bore Diameter: | 1 in |
|---|---|
| Master Cylinder Material: | Aluminum |
| Mounting Hardware Included: | No |
| Number of Outlets: | 2 |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Primary Outlet Thread Pitch: | 1 mm |
| Rearward Outlet Size: | M10 X 1.0 |
| Reservoir Included: | Yes |
| Secondary Outlet Thread Diameter: | M10 X 1.0 |
| Sensor Included: | Yes |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 46100-S84-A52 | HONDA |
| 46100-SX0-A01 | HONDA |
| 46100-SY8-A51 | HONDA |
| 8-86206-317-0 | ISUZU |
