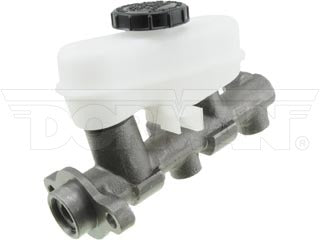

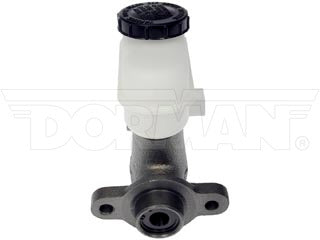

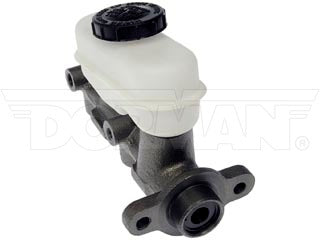

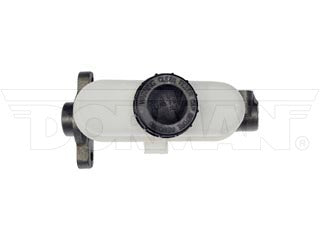

Dorman M39498 Master Cylinder
Regular price
$45.43
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 1990 | Ford | Escort | Bore: 19.75 mm and 28.58 mm | ||
| 1989 | Ford | Escort | Bore: 19.75 mm and 28.58 mm | ||
| 1988 | Ford | Escort | Bore: 19.75 mm and 28.58 mm | ||
| 1987 | Ford | Escort | Bore: 19.75 mm and 28.58 mm | ||
| 1987 | Mercury | Lynx | Bore: 19.75 mm and 28.58 mm | ||
| 1986 | Ford | Escort | Bore: 19.75 mm and 28.58 mm | ||
| 1986 | Mercury | Lynx | Bore: 19.75 mm and 28.58 mm | ||
| 1985 | Ford | Escort | Power Brakes | Bore: 19.75 mm and 28.58 mm | |
| 1985 | Ford | EXP | Bore: 19.75 mm and 28.58 mm | ||
| 1985 | Mercury | Lynx | Power Brakes | Bore: 19.75 mm and 28.58 mm | |
| 1984 | Ford | Escort | Power Brakes | Bore: 19.75 mm and 28.58 mm | |
| 1984 | Ford | EXP | Bore: 19.75 mm and 28.58 mm | ||
| 1984 | Mercury | Lynx | Power Brakes | Bore: 19.75 mm and 28.58 mm | |
| 1983 | Ford | Escort | Power Brakes | From 2/83; Bore: 19.75 mm and 28.58 mm | |
| 1983 | Ford | EXP | From 2/83; Bore: 19.75 mm and 28.58 mm | ||
| 1983 | Mercury | LN7 | From 2/83; Bore: 19.75 mm and 28.58 mm | ||
| 1983 | Mercury | Lynx | Power Brakes | From 2/83; Bore: 19.75 mm and 28.58 mm |
Product Specifications
| Master Cylinder Bore Diameter: | 19.75 mm; 28.57 mm |
|---|---|
| Master Cylinder Material: | Cast Iron |
| Mounting Hardware Included: | No |
| Number of Outlets: | 4 |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Rearward Outlet Size: | M10 x 1.0; M16 x 1.0 |
| Reservoir Included: | Yes |
| Secondary Outlet Thread Diameter: | M12 x 1.0; M18 x 1.5 |
| Sensor Included: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| E3FZ-2140-B | FORD MOTOR COMPANY |
| E9FZ-2140-A | FORD MOTOR COMPANY |
| F0FZ-2140-A | FORD MOTOR COMPANY |
