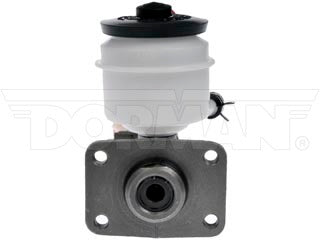

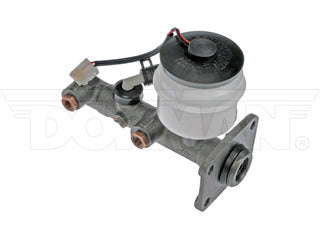

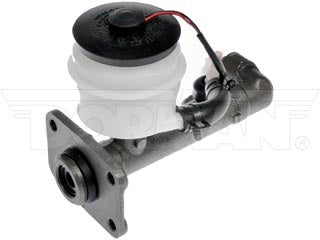

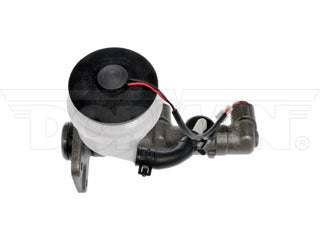

Dorman M39502 Master Cylinder
Regular price
$44.95
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 1987 | Toyota | Pickup | Power Brakes; RWD; DIESEL | 1/2 Ton; Bore: 7/8 In. | |
| 1986 | Toyota | Pickup | Power Brakes; RWD; DIESEL | 1/2 Ton; Bore: 7/8 In. | |
| 1985 | Toyota | Pickup | Naturally Aspirated; Power Brakes; RWD; GAS | 1/2 Ton; Bore: 7/8 In. | |
| 1985 | Toyota | Pickup | Power Brakes; RWD; DIESEL | 1/2 Ton; Bore: 7/8 In. | |
| 1984 | Toyota | Cressida | Power Brakes | Bore: 7/8 In. | |
| 1984 | Toyota | Pickup | Power Brakes | 1 Ton; 3/4 Ton; Bore: 7/8 In. | |
| 1984 | Toyota | Pickup | Power Brakes; RWD | 1/2 Ton; Bore: 7/8 In. | |
| 1983 | Toyota | Cressida | Power Brakes | Bore: 7/8 In. | |
| 1983 | Toyota | Pickup | Power Brakes | 3/4 Ton; Bore: 7/8 In. | |
| 1983 | Toyota | Pickup | Power Brakes; RWD | 1/2 Ton; Bore: 7/8 In. | |
| 1982 | Toyota | Cressida | Power Brakes | Bore: 7/8 In. | |
| 1982 | Toyota | Pickup | Power Brakes | 3/4 Ton; Bore: 7/8 In. | |
| 1982 | Toyota | Pickup | Power Brakes; RWD | 1/2 Ton; Bore: 7/8 In. | |
| 1981 | Toyota | Cressida | Power Brakes | Bore: 7/8 In. | |
| 1981 | Toyota | Pickup | Power Brakes | 3/4 Ton; Bore: 7/8 In. | |
| 1981 | Toyota | Pickup | Power Brakes; RWD | 1/2 Ton; Bore: 7/8 In. | |
| 1980 | Toyota | Cressida | Power Brakes | Bore: 7/8 In. | |
| 1980 | Toyota | Pickup | Power Brakes | 3/4 Ton; Bore: 7/8 In. | |
| 1980 | Toyota | Pickup | Power Brakes; RWD | 1/2 Ton; Bore: 7/8 In. | |
| 1979 | Toyota | Pickup | Power Brakes | 3/4 Ton; Bore: 7/8 In. | |
| 1979 | Toyota | Pickup | Power Brakes; RWD | 1/2 Ton; Bore: 7/8 In. |
Product Specifications
| Master Cylinder Bore Diameter: | 0.875 in |
|---|---|
| Master Cylinder Material: | Cast Iron |
| Mounting Hardware Included: | No |
| Number of Outlets: | 2 |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Primary Outlet Thread Pitch: | 1 mm |
| Rearward Outlet Size: | M10 X 1.0 |
| Reservoir Included: | Yes |
| Secondary Outlet Thread Diameter: | M10 X 1.0 |
| Sensor Included: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 47201-22120 | TOYOTA |
| 47201-22322 | TOYOTA |
| 47201-22370 | TOYOTA |
| 47201-22420 | TOYOTA |
| 47201-35210 | TOYOTA |
| 47201-35260 | TOYOTA |
| 47201-35330 | TOYOTA |
| 47201-35390 | TOYOTA |
| 47207-22090 | TOYOTA |
| 47207-35010 | TOYOTA |
