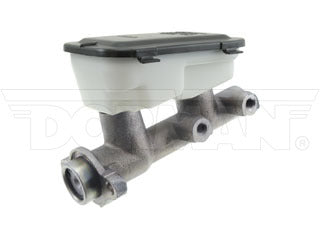

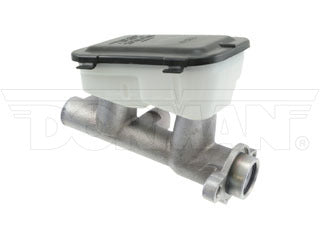

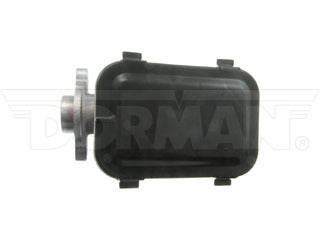

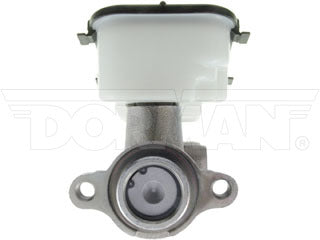

Dorman M39575 Master Cylinder
Regular price
$42.72
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 1992 | Chevrolet | Camaro | Power Brakes | Bore: 24 mm and 31.6 mm | |
| 1992 | Pontiac | Firebird | Power Brakes | Bore: 24 mm and 31.6 mm | |
| 1991 | Chevrolet | Camaro | Power Brakes | Bore: 24 mm and 31.6 mm | |
| 1991 | Pontiac | Firebird | Power Brakes | Bore: 24 mm and 31.6 mm | |
| 1990 | Chevrolet | Camaro | Power Brakes | Bore: 24 mm and 31.6 mm | |
| 1990 | Pontiac | Firebird | Power Brakes | Bore: 24 mm and 31.6 mm | |
| 1989 | Chevrolet | Camaro | Power Brakes | Bore: 24 mm and 31.6 mm | |
| 1989 | Pontiac | Firebird | Power Brakes | Bore: 24 mm and 31.6 mm | |
| 1988 | Chevrolet | Camaro | Power Brakes; Rear Drum Brakes | Bore: 24 mm and 31.6 mm | |
| 1988 | Pontiac | Firebird | Power Brakes; Rear Drum Brakes | Bore: 24 mm and 31.6 mm | |
| 1987 | Chevrolet | Camaro | Power Brakes; Rear Drum Brakes | Bore: 24 mm and 31.6 mm | |
| 1987 | Pontiac | Firebird | Power Brakes; Rear Drum Brakes | Bore: 24 mm and 31.6 mm | |
| 1986 | Chevrolet | Camaro | Power Brakes; Rear Drum Brakes | Bore: 24 mm and 31.6 mm | |
| 1986 | Pontiac | Firebird | Power Brakes; Rear Drum Brakes | Bore: 24 mm and 31.6 mm | |
| 1985 | Chevrolet | Camaro | Power Brakes; Rear Drum Brakes | Bore: 24 mm and 31.6 mm | |
| 1985 | Pontiac | Firebird | Power Brakes; Rear Drum Brakes | Bore: 24 mm and 31.6 mm | |
| 1984 | Chevrolet | Camaro | Power Brakes; Rear Drum Brakes | Bore: 24 mm and 31.6 mm | |
| 1984 | Pontiac | Firebird | Power Brakes; Rear Drum Brakes | Bore: 24 mm and 31.6 mm |
Product Specifications
| Master Cylinder Bore Diameter: | 24 mm; 31.6 mm |
|---|---|
| Master Cylinder Material: | Cast Iron |
| Mounting Hardware Included: | No |
| Number of Outlets: | 2 |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Primary Outlet Thread Pitch: | 1 mm |
| Rearward Outlet Size: | M11 x 1.5 |
| Reservoir Included: | Yes |
| Secondary Outlet Thread Diameter: | M12 X 1.0 |
| Sensor Included: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 18010572 | GENERAL MOTORS |
| 18011920 | GENERAL MOTORS |
| 18013427 | GENERAL MOTORS |
| 18014286 | GENERAL MOTORS |
