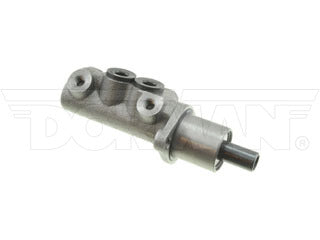

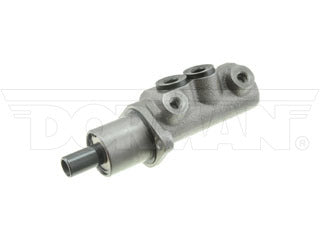

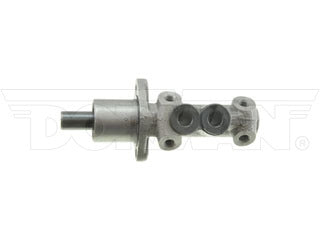

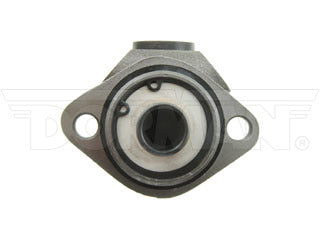

Dorman M39655 Master Cylinder
Regular price
$36.63
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 1990 | Volkswagen | Cabriolet | Bore: 13/16 In.; To VIN 15-L-015 000 | ||
| 1990 | Volkswagen | Golf | Power Brakes | Bore: 13/16 In.; To Chassis No. 028210 | |
| 1990 | Volkswagen | Jetta | 2-Wheel ABS | To Chassis No. LW480000 | |
| 1989 | Volkswagen | Cabriolet | Bore: 13/16 In. | ||
| 1989 | Volkswagen | Golf | Power Brakes | Bore: 13/16 In. | |
| 1989 | Volkswagen | Jetta | Power Brakes | Bore: 13/16 In. | |
| 1988 | Volkswagen | Cabriolet | Bore: 13/16 In. | ||
| 1988 | Volkswagen | Golf | Power Brakes | Bore: 13/16 In. | |
| 1988 | Volkswagen | Jetta | Power Brakes | Bore: 13/16 In. | |
| 1987 | Volkswagen | Cabriolet | Bore: 13/16 In. | ||
| 1987 | Volkswagen | Golf | Power Brakes | Bore: 13/16 In. | |
| 1987 | Volkswagen | Jetta | Power Brakes | Bore: 13/16 In. | |
| 1987 | Volkswagen | Scirocco | 8 Valve | Bore: 13/16 In. | |
| 1986 | Volkswagen | Cabriolet | Bore: 13/16 In. | ||
| 1986 | Volkswagen | Golf | Bore: 13/16 In. | ||
| 1986 | Volkswagen | Jetta | Bore: 13/16 In. | ||
| 1986 | Volkswagen | Scirocco | 8 Valve | Bore: 13/16 In. | |
| 1985 | Volkswagen | Cabriolet | Bore: 13/16 In. | ||
| 1985 | Volkswagen | Golf | Bore: 13/16 In. | ||
| 1985 | Volkswagen | Jetta | Bore: 13/16 In. | ||
| 1985 | Volkswagen | Scirocco | Bore: 13/16 In.; From VIN 53-E-022 075 | ||
| 1984 | Volkswagen | Caribe (Mexico) | Mexico Region | Bore: 13/16 In.; From VIN 15-E-011 291 | |
| 1984 | Volkswagen | Rabbit | GL Submodel | Bore: 13/16 In.; From VIN 15-E-011 291 | |
| 1984 | Volkswagen | Rabbit | L Submodel | Bore: 13/16 In.; From VIN 15-E-011 291 | |
| 1984 | Volkswagen | Rabbit | Wolfsburg Edition Submodel | Bore: 13/16 In.; From VIN 15-E-011 291 | |
| 1984 | Volkswagen | Rabbit Convertible | Bore: 13/16 In.; From VIN 15-E-011 291 | ||
| 1984 | Volkswagen | Scirocco | Bore: 13/16 In.; From VIN 53-E-022 075 |
Product Specifications
| Master Cylinder Bore Diameter: | 0.813 in |
|---|---|
| Master Cylinder Material: | Cast Iron |
| Mounting Hardware Included: | No |
| Number of Outlets: | 4 |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Primary Outlet Thread Pitch: | 1 mm |
| Rearward Outlet Size: | M10 X 1.0 |
| Reservoir Included: | No |
| Secondary Outlet Thread Diameter: | M10 X 1.0 |
| Sensor Included: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 191 611 019 | VOLKSWAGEN |
| 191 698 309 | VOLKSWAGEN |
