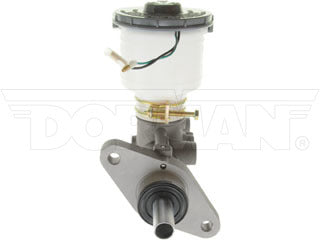

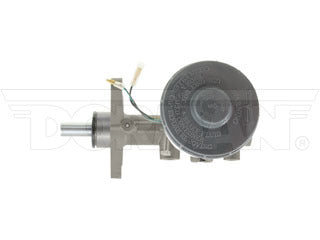

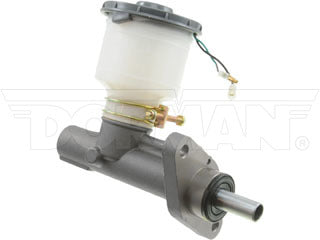

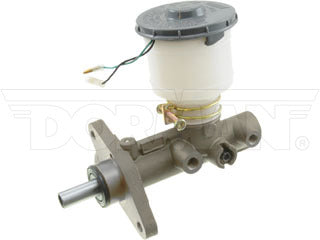

Dorman M39970 Master Cylinder
Regular price
$50.43
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 1997 | Acura | CL | Bore: 1 In. | ||
| 1997 | Honda | Accord | 4-Wheel ABS | Bore: 1 In. | |
| 1997 | Honda | Odyssey | Bore: 1 In. | ||
| 1997 | Isuzu | Oasis | Bore: 1 In. | ||
| 1996 | Acura | TL | L5 2.5L (2451cc) | Bore: 1 In. | |
| 1996 | Honda | Accord | 4-Wheel ABS | Bore: 1 In. | |
| 1996 | Honda | Odyssey | Bore: 1 In. | ||
| 1996 | Honda | Prelude | Si Submodel | Bore: 1 In. | |
| 1996 | Honda | Prelude | VTEC Submodel | Bore: 1 In. | |
| 1996 | Isuzu | Oasis | Bore: 1 In. | ||
| 1995 | Acura | TL | Bore: 1 In. | ||
| 1995 | Honda | Accord | 4-Wheel ABS | Bore: 1 In. | |
| 1995 | Honda | Odyssey | Bore: 1 In. | ||
| 1995 | Honda | Prelude | SE Submodel | Bore: 1 In. | |
| 1995 | Honda | Prelude | Si Submodel | Bore: 1 In. | |
| 1995 | Honda | Prelude | VTEC Submodel | Bore: 1 In. | |
| 1994 | Acura | Vigor | Bore: 1 In. | ||
| 1994 | Honda | Accord | 4-Wheel ABS | Bore: 1 In. | |
| 1994 | Honda | Prelude | Si 4WS Submodel | Bore: 1 In. | |
| 1994 | Honda | Prelude | Si Submodel | Bore: 1 In. | |
| 1994 | Honda | Prelude | VTEC Submodel | Bore: 1 In. | |
| 1993 | Acura | Vigor | Bore: 1 In. | ||
| 1993 | Honda | Accord | 4-Wheel ABS | Bore: 1 In. | |
| 1993 | Honda | Prelude | Si 4WS Submodel | Bore: 1 In. | |
| 1993 | Honda | Prelude | Si Submodel | Bore: 1 In. | |
| 1993 | Honda | Prelude | VTEC Submodel | Bore: 1 In. | |
| 1992 | Acura | Vigor | Bore: 1 In. | ||
| 1992 | Honda | Accord | EX Submodel | Bore: 1 In. | |
| 1992 | Honda | Prelude | Si 4WS Submodel | Bore: 1 In. | |
| 1992 | Honda | Prelude | Si Submodel | Bore: 1 In. | |
| 1991 | Honda | Accord | EX Submodel | Bore: 1 In. | |
| 1991 | Honda | Accord | SE Submodel | Bore: 1 In. |
Product Specifications
| Master Cylinder Bore Diameter: | 1 in |
|---|---|
| Master Cylinder Material: | Aluminum |
| Mounting Hardware Included: | No |
| Number of Outlets: | 2 |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Primary Outlet Thread Pitch: | 1 mm |
| Rearward Outlet Size: | M12 X 1.0 |
| Reservoir Included: | Yes |
| Secondary Outlet Thread Diameter: | M10 X 1.0 |
| Sensor Included: | Yes |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 46100-SM4-G52 | HONDA |
| 46100-SM4-G53 | HONDA |
| 46100-SM4-G54 | HONDA |
| 46100-SS0-A51 | HONDA |
| 46100-SS0-A52 | HONDA |
| 46100-SS0-A53 | HONDA |
| 8-86203-058-0 | ISUZU |
| 8-86205-509-0 | ISUZU |
