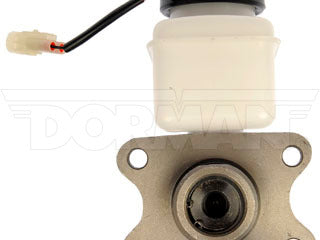

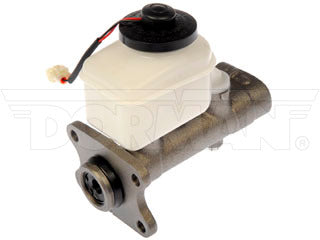

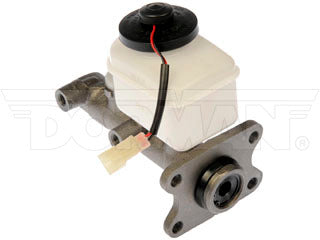

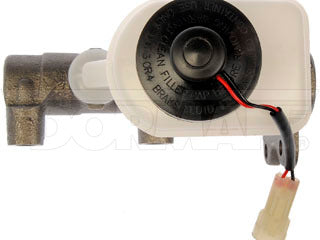

Dorman M39996 Master Cylinder
Regular price
$54.51
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 1995 | Toyota | 4Runner | 2-Wheel ABS | Bore: 1 In. | |
| 1995 | Toyota | 4Runner | Non-ABS | Bore: 1 In. | |
| 1995 | Toyota | Pickup | 4WD | Bore: 1 In. | |
| 1995 | Toyota | Pickup | RWD; DLX Submodel | Bore: 1 In. | |
| 1995 | Toyota | Pickup | RWD; SR5 Submodel | Bore: 1 In. | |
| 1994 | Toyota | 4Runner | 2-Wheel ABS | Bore: 1 In. | |
| 1994 | Toyota | 4Runner | Non-ABS | Bore: 1 In. | |
| 1994 | Toyota | Land Cruiser | Non-ABS | From 5/94 | |
| 1994 | Toyota | Land Cruiser | Non-ABS | To 5/94 | |
| 1994 | Toyota | Pickup | 4WD | Bore: 1 In. | |
| 1994 | Toyota | Pickup | RWD; DLX Submodel | Bore: 1 In. | |
| 1994 | Toyota | Pickup | RWD; SR5 Submodel | Bore: 1 In. | |
| 1994 | Toyota | T100 | 1/2 Ton; Bore: 1 In. | ||
| 1993 | Toyota | 4Runner | |||
| 1993 | Toyota | Land Cruiser | Non-ABS | ||
| 1993 | Toyota | Pickup | 4WD | ||
| 1993 | Toyota | Pickup | RWD | Built in Japan | |
| 1993 | Toyota | Pickup | RWD | w/Long Bed | |
| 1993 | Toyota | Pickup | RWD; L4 2.4L (2366cc); DLX Submodel | Built in U.S.A.; with Short Bed | |
| 1993 | Toyota | T100 | 1/2 Ton; Bore: 1 In. | ||
| 1992 | Toyota | 4Runner | Bore: 1 In. | ||
| 1992 | Toyota | Pickup | 4WD | Bore: 1 In. | |
| 1992 | Toyota | Pickup | RWD; L4 2.4L (2366cc); DLX Submodel | Bore: 1 In. | |
| 1992 | Toyota | Pickup | RWD; V6 3.0L (2959cc) | Bore: 1 In. | |
| 1991 | Toyota | 4Runner | Bore: 1 In. | ||
| 1991 | Toyota | Pickup | 4WD | Bore: 1 In. | |
| 1991 | Toyota | Pickup | RWD; Automatic Trans. | Bore: 1 In. | |
| 1990 | Toyota | 4Runner | |||
| 1990 | Toyota | Pickup | 4WD | ||
| 1990 | Toyota | Pickup | RWD; Automatic Trans. | ||
| 1989 | Toyota | 4Runner | |||
| 1989 | Toyota | Pickup | 4WD | ||
| 1989 | Toyota | Pickup | RWD; Automatic Trans. |
Product Specifications
| Master Cylinder Bore Diameter: | 1 in |
|---|---|
| Master Cylinder Material: | Cast Iron |
| Mounting Hardware Included: | No |
| Number of Outlets: | 2 |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Primary Outlet Thread Pitch: | 1 mm |
| Rearward Outlet Size: | M10 X 1.0 |
| Reservoir Included: | Yes |
| Secondary Outlet Thread Diameter: | M10 X 1.0 |

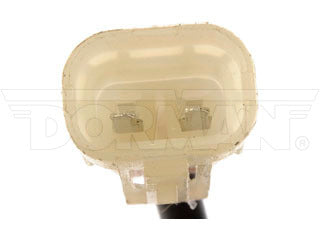

| Sensor Included: | Yes |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 47201-04020 | TOYOTA |
| 47201-30010 | TOYOTA |
| 47201-30020 | TOYOTA |
| 47201-34010 | TOYOTA |
| 47201-35660 | TOYOTA |
| 47201-35670 | TOYOTA |
| 47201-3D010 | TOYOTA |
| 47201-3D020 | TOYOTA |
| 47201-60540 | TOYOTA |
| 47201-60570 | TOYOTA |
