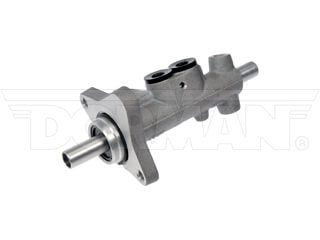

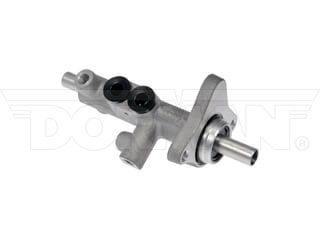

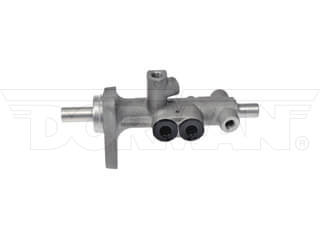

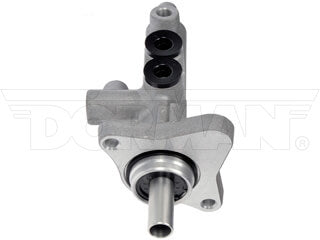

Dorman M630178 Master Cylinder
Regular price
$180.30
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2005 | Mercedes-Benz | C230 | Coupe | Bore: 20 mm and 23 mm | |
| 2005 | Mercedes-Benz | C240 | AWD | Bore: 20 mm and 23 mm | |
| 2005 | Mercedes-Benz | C320 | AWD | Bore: 20 mm and 23 mm | |
| 2005 | Mercedes-Benz | C320 | Coupe | Bore: 20 mm and 23 mm | |
| 2004 | Mercedes-Benz | C230 | Coupe | Bore: 20 mm and 23 mm | |
| 2004 | Mercedes-Benz | C240 | AWD | Bore: 20 mm and 23 mm | |
| 2004 | Mercedes-Benz | C320 | AWD | Bore: 20 mm and 23 mm | |
| 2004 | Mercedes-Benz | C320 | Coupe | Bore: 20 mm and 23 mm | |
| 2003 | Mercedes-Benz | C230 | Coupe | Bore: 20 mm and 23 mm | |
| 2003 | Mercedes-Benz | C240 | AWD | Bore: 20 mm and 23 mm | |
| 2003 | Mercedes-Benz | C320 | AWD | Bore: 20 mm and 23 mm | |
| 2003 | Mercedes-Benz | C320 | Coupe | Bore: 20 mm and 23 mm | |
| 2002 | Mercedes-Benz | C240 | Bore: 23 mm | ||
| 2001 | Mercedes-Benz | C240 | Bore: 23 mm |
Product Specifications
| Master Cylinder Bore Diameter: | 20 mm; 23 mm |
|---|---|
| Master Cylinder Material: | Aluminum |
| Mounting Hardware Included: | No |
| Number of Outlets: | 2 |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Primary Outlet Thread Pitch: | 1 mm |
| Rearward Outlet Size: | M12 X 1.0 |
| Reservoir Included: | No |
| Secondary Outlet Thread Diameter: | M12 X 1.0 |
| Sensor Included: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 005 430 96 01 | MERCEDES-BENZ |
