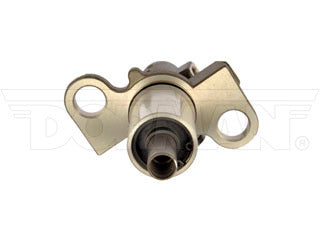

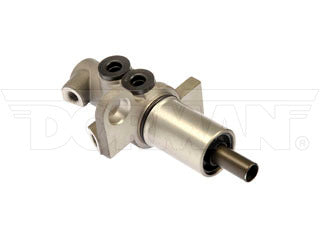

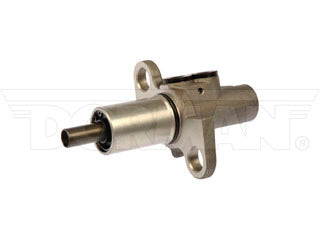

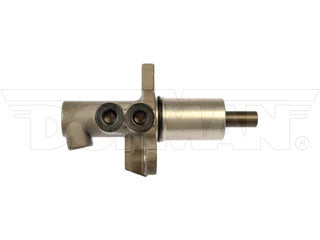

Dorman M630204 Master Cylinder
Regular price
$110.65
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2011 | Audi | A6 | Bore: 25 mm; Armored Car | ||
| 2011 | Audi | A6 Quattro | Bore: 25 mm; Armored Car | ||
| 2011 | Audi | S6 | Bore: 25 mm; Armored Car | ||
| 2010 | Audi | A6 | Armored Car | ||
| 2010 | Audi | A6 Quattro | Armored Car | ||
| 2009 | Audi | A4 | Bore: 25 mm; w/Girling-TRW Brakes | ||
| 2009 | Audi | A4 Quattro | Bore: 25 mm; w/Girling-TRW Brakes | ||
| 2008 | Audi | A4 | Bore: 25 mm; w/Girling-TRW Brakes | ||
| 2008 | Audi | A4 Quattro | Bore: 25 mm; w/Girling-TRW Brakes | ||
| 2008 | Audi | S4 | Bore: 25 mm; w/Girling-TRW Brakes | ||
| 2007 | Audi | A4 | Bore: 25 mm; w/Girling-TRW Brakes | ||
| 2007 | Audi | A4 Quattro | Bore: 25 mm; w/Girling-TRW Brakes | ||
| 2007 | Audi | S4 | Bore: 25 mm; w/Girling-TRW Brakes | ||
| 2006 | Audi | A4 | Bore: 25 mm; w/Girling-TRW Brakes | ||
| 2006 | Audi | A4 Quattro | Bore: 25 mm; w/Girling-TRW Brakes | ||
| 2006 | Audi | A6 | Bore: 25 mm | ||
| 2006 | Audi | A6 Quattro | Bore: 25 mm | ||
| 2006 | Audi | S4 | Bore: 25 mm; w/Girling-TRW Brakes | ||
| 2005 | Audi | A4 | Bore: 25 mm; w/Girling-TRW Brakes | ||
| 2005 | Audi | A4 Quattro | Bore: 25 mm; w/Girling-TRW Brakes | ||
| 2005 | Audi | A6 Quattro | Bore: 25 mm | ||
| 2005 | Audi | Allroad Quattro | V6 2.7L (2671cc) | Bore: 25 mm | |
| 2005 | Audi | S4 | Bore: 25 mm; w/Girling-TRW Brakes | ||
| 2005 | Volkswagen | Passat | Bore: 25 mm | ||
| 2004 | Audi | A4 | Bore: 25 mm; w/Girling-TRW Brakes | ||
| 2004 | Audi | A4 Quattro | Bore: 25 mm; w/Girling-TRW Brakes | ||
| 2004 | Audi | A6 | Bore: 25 mm | ||
| 2004 | Audi | A6 Quattro | Bore: 25 mm | ||
| 2004 | Audi | Allroad Quattro | V6 2.7L (2671cc) | Bore: 25 mm | |
| 2004 | Audi | S4 | Bore: 25 mm; w/Girling-TRW Brakes | ||
| 2004 | Volkswagen | Passat | Bore: 25 mm | ||
| 2003 | Audi | A4 | Bore: 25 mm; w/Girling-TRW Brakes | ||
| 2003 | Audi | A4 Quattro | Bore: 25 mm; w/Girling-TRW Brakes | ||
| 2003 | Audi | A6 | Bore: 25 mm | ||
| 2003 | Audi | A6 Quattro | Bore: 25 mm | ||
| 2003 | Audi | Allroad Quattro | V6 2.7L (2671cc) | Bore: 25 mm | |
| 2003 | Audi | S6 | Bore: 25 mm | ||
| 2003 | Volkswagen | Passat | Bore: 25 mm | ||
| 2002 | Audi | A4 | Bore: 25 mm | ||
| 2002 | Audi | A6 | Bore: 25 mm | ||
| 2002 | Audi | A6 Quattro | Bore: 25 mm | ||
| 2002 | Audi | S4 | Bore: 25 mm; w/Girling-TRW Brakes | ||
| 2002 | Audi | S6 | Bore: 25 mm | ||
| 2002 | Volkswagen | Passat | Bore: 25 mm |
Product Specifications
| Master Cylinder Bore Diameter: | 1 in |
|---|---|
| Master Cylinder Material: | Aluminum |
| Mounting Hardware Included: | No |
| Number of Outlets: | 2 |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Primary Outlet Thread Pitch: | 1 mm |
| Rearward Outlet Size: | M12 X 1.0 |
| Reservoir Included: | No |
| Secondary Outlet Thread Diameter: | M12 X 1.0 |
| Sensor Included: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 8E0 611 021 | VOLKSWAGEN |
