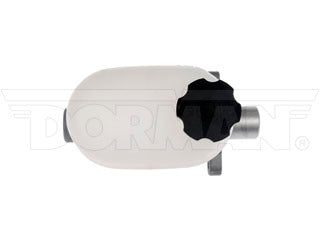

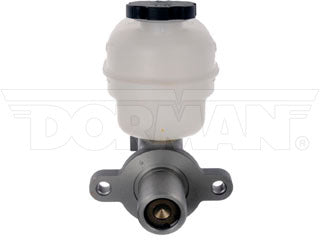

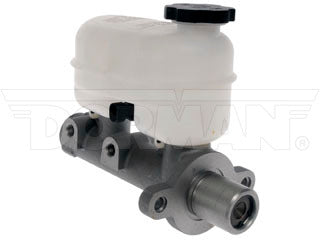

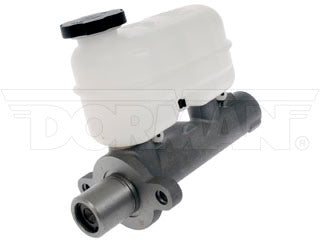

Dorman M630325 Master Cylinder
Regular price
$101.20
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2007 | Chevrolet | Silverado 1500 Classic | LS Submodel | Bore: 1.125 In.; w/Roll Pin Reservoir Retainer | |
| 2007 | Chevrolet | Silverado 1500 Classic | LT Submodel | Bore: 1.125 In.; w/Roll Pin Reservoir Retainer | |
| 2007 | Chevrolet | Silverado 1500 Classic | SS Submodel | Bore: 1.125 In.; w/Roll Pin Reservoir Retainer | |
| 2007 | Chevrolet | Silverado 1500 Classic | WT Submodel | Bore: 1.125 In.; w/Roll Pin Reservoir Retainer | |
| 2007 | GMC | Sierra 1500 Classic | SL Submodel | Bore: 1.125 In.; w/Roll Pin Reservoir Retainer | |
| 2007 | GMC | Sierra 1500 Classic | SLE Submodel | Bore: 1.125 In.; w/Roll Pin Reservoir Retainer | |
| 2007 | GMC | Sierra 1500 Classic | SLT Submodel | Bore: 1.125 In.; w/Roll Pin Reservoir Retainer | |
| 2007 | GMC | Sierra 1500 Classic | WT Submodel | Bore: 1.125 In.; w/Roll Pin Reservoir Retainer | |
| 2006 | Chevrolet | Silverado 1500 | Base Submodel | Bore: 1.125 In.; w/Vacuum Brake System; w/Roll Pin Reservoir Retainer | |
| 2006 | Chevrolet | Silverado 1500 | LS Submodel | Bore: 1.125 In.; w/Vacuum Brake System; w/Roll Pin Reservoir Retainer | |
| 2006 | Chevrolet | Silverado 1500 | LT Submodel | Bore: 1.125 In.; w/Vacuum Brake System; w/Roll Pin Reservoir Retainer | |
| 2006 | Chevrolet | Silverado 1500 | SS Submodel | Bore: 1.125 In.; w/Vacuum Brake System; w/Roll Pin Reservoir Retainer | |
| 2006 | Chevrolet | Silverado 1500 | WT Submodel | Bore: 1.125 In.; w/Vacuum Brake System; w/Roll Pin Reservoir Retainer | |
| 2006 | Chevrolet | Silverado 1500 HD | Bore: 1.125 In.; w/Vacuum Brake System; w/Roll Pin Reservoir Retainer | ||
| 2006 | GMC | Sierra 1500 | Denali Submodel | Bore: 1.125 In.; w/Vacuum Brake System; w/Roll Pin Reservoir Retainer | |
| 2006 | GMC | Sierra 1500 | SL Submodel | Bore: 1.125 In.; w/Vacuum Brake System; w/Roll Pin Reservoir Retainer | |
| 2006 | GMC | Sierra 1500 | SLE Submodel | Bore: 1.125 In.; w/Vacuum Brake System; w/Roll Pin Reservoir Retainer | |
| 2006 | GMC | Sierra 1500 | SLT Submodel | Bore: 1.125 In.; w/Vacuum Brake System; w/Roll Pin Reservoir Retainer | |
| 2006 | GMC | Sierra 1500 | WT Submodel | Bore: 1.125 In.; w/Vacuum Brake System; w/Roll Pin Reservoir Retainer | |
| 2006 | GMC | Sierra 1500 HD | Bore: 1.125 In.; w/Vacuum Brake System; w/Roll Pin Reservoir Retainer | ||
| 2005 | Chevrolet | Silverado 1500 | 68.4 Inch BedLength; Crew Cab Pickup | Bore: 1.125 In.; w/Roll Pin Reservoir Retainer; w/RPO Code JF3 (7,000 Lb. GVW, Power Brakes, Vacuum Boosted, 17 In. Front Disc, Rear Drum, w/ABS) | |
| 2005 | Chevrolet | Silverado 1500 | Extended Cab Pickup; Base Submodel | Bore: 1.125 In.; w/Roll Pin Reservoir Retainer; w/RPO Code JF7 (6,400 Lb. GVW, Power Brakes, Vacuum Boosted, 17 In. Front Disc, Rear Drum, w/Rear ABS) | |
| 2005 | Chevrolet | Silverado 1500 | Extended Cab Pickup; LS Submodel | Bore: 1.125 In.; w/Roll Pin Reservoir Retainer; w/RPO Code JF7 (6,400 Lb. GVW, Power Brakes, Vacuum Boosted, 17 In. Front Disc, Rear Drum, w/Rear ABS) | |
| 2005 | Chevrolet | Silverado 1500 | Extended Cab Pickup; LT Submodel | Bore: 1.125 In.; w/Roll Pin Reservoir Retainer; w/RPO Code JF7 (6,400 Lb. GVW, Power Brakes, Vacuum Boosted, 17 In. Front Disc, Rear Drum, w/Rear ABS) | |
| 2005 | Chevrolet | Silverado 1500 | Extended Cab Pickup; SS Submodel | Bore: 1.125 In.; w/Roll Pin Reservoir Retainer; w/RPO Code JF7 (6,400 Lb. GVW, Power Brakes, Vacuum Boosted, 17 In. Front Disc, Rear Drum, w/Rear ABS) | |
| 2005 | Chevrolet | Silverado 1500 | Standard Cab Pickup; Base Submodel | Bore: 1.125 In.; w/Roll Pin Reservoir Retainer; w/RPO Code JF7 (6,400 Lb. GVW, Power Brakes, Vacuum Boosted, 17 In. Front Disc, Rear Drum, w/Rear ABS) | |
| 2005 | Chevrolet | Silverado 1500 | Standard Cab Pickup; LS Submodel | Bore: 1.125 In.; w/Roll Pin Reservoir Retainer; w/RPO Code JF7 (6,400 Lb. GVW, Power Brakes, Vacuum Boosted, 17 In. Front Disc, Rear Drum, w/Rear ABS) | |
| 2005 | Chevrolet | Silverado 1500 HD | Bore: 1.125 In.; w/Vacuum Brake System; w/Roll Pin Reservoir Retainer | ||
| 2005 | GMC | Sierra 1500 | 68.4 Inch BedLength; Crew Cab Pickup | Bore: 1.125 In.; w/Roll Pin Reservoir Retainer; w/RPO Code JF3 (7,000 Lb. GVW, Power Brakes, Vacuum Boosted, 17 In. Front Disc, Rear Drum, w/ABS) | |
| 2005 | GMC | Sierra 1500 | Extended Cab Pickup; Base Submodel | Bore: 1.125 In.; w/Roll Pin Reservoir Retainer; w/RPO Code JF7 (6,400 Lb. GVW, Power Brakes, Vacuum Boosted, 17 In. Front Disc, Rear Drum, w/Rear ABS) | |
| 2005 | GMC | Sierra 1500 | Extended Cab Pickup; SLE Submodel | Bore: 1.125 In.; w/Roll Pin Reservoir Retainer; w/RPO Code JF7 (6,400 Lb. GVW, Power Brakes, Vacuum Boosted, 17 In. Front Disc, Rear Drum, w/Rear ABS) | |
| 2005 | GMC | Sierra 1500 | Extended Cab Pickup; SLT Submodel | Bore: 1.125 In.; w/Roll Pin Reservoir Retainer; w/RPO Code JF7 (6,400 Lb. GVW, Power Brakes, Vacuum Boosted, 17 In. Front Disc, Rear Drum, w/Rear ABS) | |
| 2005 | GMC | Sierra 1500 | Extended Cab Pickup; WT Submodel | Bore: 1.125 In.; w/Roll Pin Reservoir Retainer; w/RPO Code JF7 (6,400 Lb. GVW, Power Brakes, Vacuum Boosted, 17 In. Front Disc, Rear Drum, w/Rear ABS) | |
| 2005 | GMC | Sierra 1500 | Standard Cab Pickup; Base Submodel | Bore: 1.125 In.; w/Roll Pin Reservoir Retainer; w/RPO Code JF7 (6,400 Lb. GVW, Power Brakes, Vacuum Boosted, 17 In. Front Disc, Rear Drum, w/Rear ABS) | |
| 2005 | GMC | Sierra 1500 | Standard Cab Pickup; SLE Submodel | Bore: 1.125 In.; w/Roll Pin Reservoir Retainer; w/RPO Code JF7 (6,400 Lb. GVW, Power Brakes, Vacuum Boosted, 17 In. Front Disc, Rear Drum, w/Rear ABS) | |
| 2005 | GMC | Sierra 1500 | Standard Cab Pickup; WT Submodel | Bore: 1.125 In.; w/Roll Pin Reservoir Retainer; w/RPO Code JF7 (6,400 Lb. GVW, Power Brakes, Vacuum Boosted, 17 In. Front Disc, Rear Drum, w/Rear ABS) | |
| 2005 | GMC | Sierra 1500 HD | Bore: 1.125 In.; w/Vacuum Brake System; w/Roll Pin Reservoir Retainer |
Product Specifications
| Master Cylinder Bore Diameter: | 1.125 in |
|---|---|
| Master Cylinder Material: | Aluminum |
| Mounting Hardware Included: | No |
| Number of Outlets: | 2 |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Rearward Outlet Size: | 1/2-20 |
| Reservoir Included: | Yes |
| Secondary Outlet Thread Diameter: | 1/2-20 |
| Sensor Included: | Yes |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 15183822 | GENERAL MOTORS |
