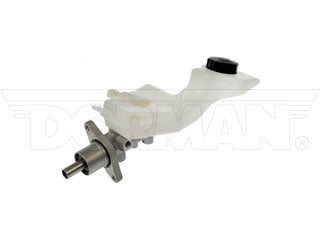

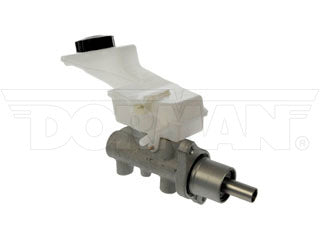

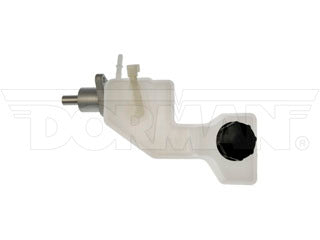

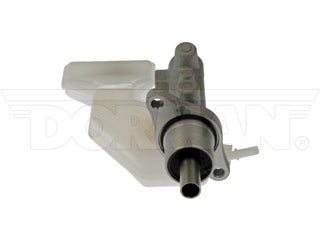

Dorman M630486 Master Cylinder
Regular price
$83.56
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2013 | Mazda | 3 | L4 122 2.0L (1998cc); 5 Speed Trans. | ||
| 2013 | Mazda | 3 | L4 122 2.0L (1998cc); 6 Speed Trans. | ||
| 2013 | Mazda | 3 | L4 122 2.0L (1999cc); 5 Speed Trans. | ||
| 2013 | Mazda | 3 | L4 122 2.0L (2000cc); 5 Speed Trans. | ||
| 2013 | Mazda | 3 | L4 122 2.0L (2000cc); 6 Speed Trans. | ||
| 2013 | Mazda | 3 | L4 152 2.5L (2488cc) | ||
| 2012 | Mazda | 3 | Naturally Aspirated | ||
| 2011 | Mazda | 3 | Naturally Aspirated | Bore: 25 mm | |
| 2010 | Mazda | 3 | Naturally Aspirated | Bore: 25 mm | |
| 2009 | Mazda | 3 | Naturally Aspirated; 4-Wheel ABS | Bore: 25 mm | |
| 2008 | Mazda | 3 | Naturally Aspirated; 4-Wheel ABS | Bore: 25 mm | |
| 2007 | Mazda | 3 | Naturally Aspirated; 4-Wheel ABS | Bore: 25 mm | |
| 2006 | Mazda | 3 | 4-Wheel ABS | Bore: 25 mm | |
| 2005 | Mazda | 3 | 4-Wheel ABS | Bore: 25 mm | |
| 2004 | Mazda | 3 | 4-Wheel ABS | Bore: 25 mm |
Product Specifications
| Master Cylinder Bore Diameter: | 1 in |
|---|---|
| Master Cylinder Material: | Aluminum |
| Mounting Hardware Included: | No |
| Number of Outlets: | 2 |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Primary Outlet Thread Pitch: | 1 mm |
| Rearward Outlet Size: | M12 X 1.0 |
| Reservoir Included: | Yes |
| Secondary Outlet Thread Diameter: | M12 X 1.0 |
| Sensor Included: | Yes |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| BPYS4340Z | MAZDA |
| BPYS-43-40ZA | MAZDA |
| BPYS4340ZB | MAZDA |
| BPYS4340ZC | MAZDA |
| BPYS-43-40ZR0B | MAZDA |
