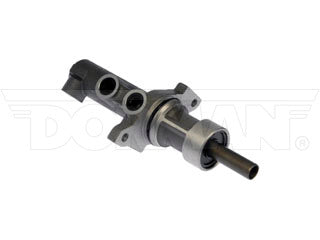

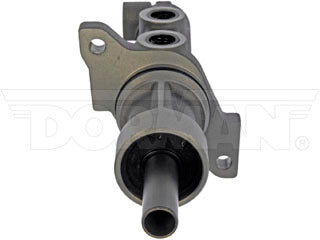

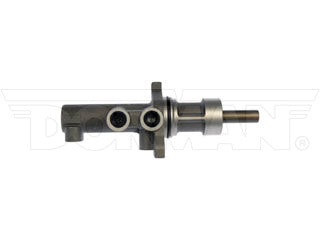

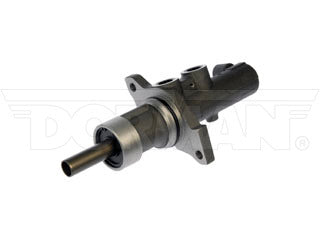

Dorman M630516 Master Cylinder
Regular price
$91.65
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2009 | Dodge | Sprinter 2500 | Bore: 1.0625 In. | ||
| 2009 | Dodge | Sprinter 3500 | Bore: 1.0625 In. | ||
| 2009 | Freightliner | Sprinter 2500 | Standard Cargo Van | ||
| 2009 | Freightliner | Sprinter 3500 | |||
| 2009 | Volkswagen | Crafter Van (Mexico) | Mexico Region | Bore: 1.0625 In. | |
| 2008 | Dodge | Sprinter 2500 | Bore: 1.0625 In. | ||
| 2008 | Dodge | Sprinter 3500 | Bore: 1.0625 In. | ||
| 2008 | Freightliner | Sprinter 2500 | Extended Cargo Van | ||
| 2008 | Freightliner | Sprinter 2500 | Standard Cargo Van | ||
| 2008 | Freightliner | Sprinter 3500 | |||
| 2008 | Volkswagen | Crafter Van (Mexico) | Mexico Region | Bore: 1.0625 In. | |
| 2007 | Dodge | Sprinter 2500 | Bore: 1.0625 In. | ||
| 2007 | Dodge | Sprinter 3500 | Bore: 1.0625 In. | ||
| 2007 | Freightliner | Sprinter 2500 | Extended Cargo Van | ||
| 2007 | Freightliner | Sprinter 2500 | Standard Cargo Van | ||
| 2007 | Freightliner | Sprinter 3500 | |||
| 2006 | Freightliner | Sprinter 2500 | Cab and Chassis | ||
| 2006 | Freightliner | Sprinter 2500 | Standard Cargo Van | ||
| 2006 | Freightliner | Sprinter 3500 | |||
| 2005 | Freightliner | Sprinter 2500 | Cab and Chassis | ||
| 2005 | Freightliner | Sprinter 2500 | Standard Cargo Van | ||
| 2005 | Freightliner | Sprinter 3500 | |||
| 2004 | Freightliner | Sprinter 2500 | Standard Cargo Van | ||
| 2004 | Freightliner | Sprinter 3500 | |||
| 2003 | Freightliner | Sprinter 2500 | Standard Cargo Van | ||
| 2003 | Freightliner | Sprinter 3500 | |||
| 2002 | Freightliner | Sprinter 2500 | Standard Cargo Van | From Chassis No. 400727 | |
| 2002 | Freightliner | Sprinter 3500 | From Chassis No. 400727 |
Product Specifications
| Master Cylinder Bore Diameter: | 1.063 in |
|---|---|
| Master Cylinder Material: | Aluminum |
| Mounting Hardware Included: | No |
| Number of Outlets: | 2 |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Primary Outlet Thread Pitch: | 1 mm |
| Rearward Outlet Size: | M12 X 1.0 |
| Reservoir Included: | No |
| Secondary Outlet Thread Diameter: | M12 X 1.0 |
| Sensor Included: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 68005054AA | CHRYSLER |
