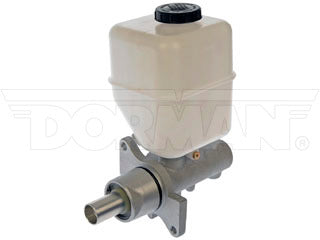

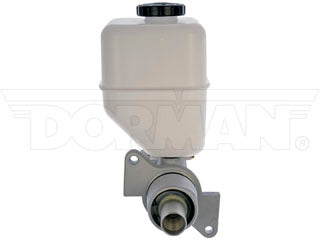

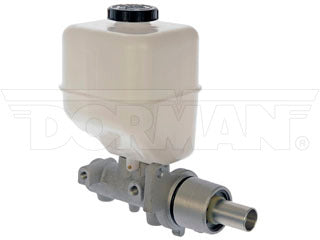

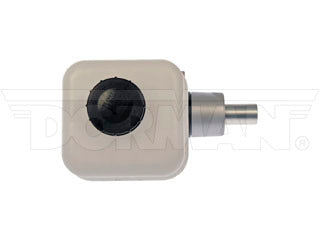

Dorman M630524 Master Cylinder
Regular price
$118.20
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2010 | Ford | F-250 Super Duty | w/Brake Control Valve; w/Vacuum Boost | ||
| 2010 | Ford | F-350 Super Duty | w/Brake Control Valve; w/Vacuum Boost | ||
| 2010 | Ford | F-450 Super Duty | w/Brake Control Valve; w/Vacuum Boost | ||
| 2010 | Ford | F-550 Super Duty | w/Brake Control Valve; w/Vacuum Boost | ||
| 2009 | Ford | F-250 (Mexico) | w/Brake Control Valve; w/Vacuum Boost | ||
| 2009 | Ford | F-250 Super Duty | w/Brake Control Valve; w/Vacuum Boost | ||
| 2009 | Ford | F-350 (Mexico) | w/Brake Control Valve; w/Vacuum Boost | ||
| 2009 | Ford | F-350 Super Duty | w/Brake Control Valve; w/Vacuum Boost | ||
| 2009 | Ford | F-450 Super Duty | w/Brake Control Valve; w/Vacuum Boost | ||
| 2009 | Ford | F-550 Super Duty | w/Brake Control Valve; w/Vacuum Boost | ||
| 2008 | Ford | F-250 Super Duty | Bore: 1.3125 In.; w/Vacuum Brake System; w/Brake Control Valve | ||
| 2008 | Ford | F-350 Super Duty | Bore: 1.3125 In.; w/Vacuum Brake System; w/Brake Control Valve; To 12/03/07; From 10/30/07 | ||
| 2008 | Ford | F-450 Super Duty | w/Vacuum Brake System; wo/Brake Control Valve | ||
| 2008 | Ford | F-550 Super Duty | w/Vacuum Brake System; wo/Brake Control Valve |
Product Specifications
| Master Cylinder Bore Diameter: | 1.313 in |
|---|---|
| Master Cylinder Material: | Aluminum |
| Mounting Hardware Included: | No |
| Number of Outlets: | 4 |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Rearward Outlet Size: | M12 X 1.0 |
| Reservoir Included: | Yes |
| Secondary Outlet Thread Diameter: | M10 x 1.0 and 3/8-24 |
| Sensor Included: | Yes |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 8C3Z2140D | FORD MOTOR COMPANY |
| 8C3Z-2140-DB | FORD MOTOR COMPANY |
| 8C3Z2140K | FORD MOTOR COMPANY |
