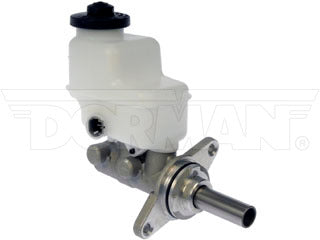

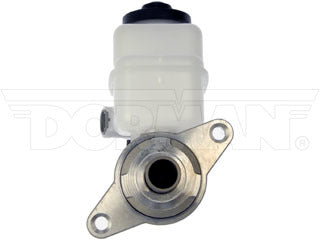

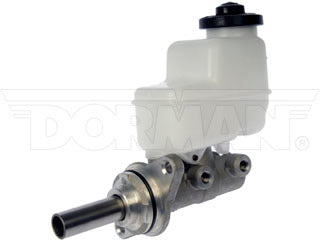

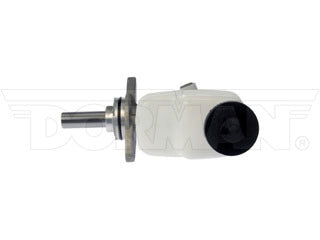

Dorman M630561 Master Cylinder
Regular price
$83.32
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2019 | Toyota | RAV4 | LE Submodel | ||
| 2018 | Toyota | RAV4 | LE Submodel | ||
| 2018 | Toyota | RAV4 | SE Submodel | ||
| 2017 | Toyota | RAV4 | LE Submodel | ||
| 2017 | Toyota | RAV4 | SE Submodel | ||
| 2016 | Toyota | RAV4 | LE Submodel | ||
| 2016 | Toyota | RAV4 | SE Submodel | ||
| 2015 | Toyota | RAV4 | LE Submodel | ||
| 2014 | Toyota | RAV4 | LE Submodel | ||
| 2012 | Toyota | RAV4 | L4 152 2.5L (2488cc) | Built in Japan; Bore: 13/16 In.; wo/3rd Row Seat | |
| 2012 | Toyota | RAV4 | L4 152 2.5L (2494cc) | Built in Japan; Bore: 13/16 In.; wo/3rd Row Seat | |
| 2011 | Toyota | RAV4 | L4 152 2.5L (2488cc) | Built in Japan; Bore: 13/16 In.; wo/3rd Row Seat | |
| 2011 | Toyota | RAV4 | L4 152 2.5L (2494cc) | Built in Japan; Bore: 13/16 In.; wo/3rd Row Seat | |
| 2010 | Toyota | RAV4 | L4 152 2.5L (2494cc); Base Submodel | Bore: 13/16 In. | |
| 2010 | Toyota | RAV4 | L4 152 2.5L (2494cc); Sport Submodel | Bore: 13/16 In. | |
| 2009 | Toyota | RAV4 | L4 152 2.5L (2494cc); Base Submodel | Bore: 13/16 In. | |
| 2009 | Toyota | RAV4 | L4 152 2.5L (2494cc); Sport Submodel | Bore: 13/16 In. | |
| 2008 | Toyota | RAV4 | L4 2.4L (2362cc); Sport Submodel | Bore: 13/16 In. | |
| 2007 | Toyota | RAV4 | L4 2.4L (2362cc); Sport Submodel | Bore: 13/16 In. | |
| 2006 | Toyota | RAV4 | L4 2.4L (2362cc); Sport Submodel | Bore: 13/16 In. |
Product Specifications
| Master Cylinder Bore Diameter: | 0.813 in |
|---|---|
| Master Cylinder Material: | Aluminum |
| Mounting Hardware Included: | No |
| Number of Outlets: | 2 |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Primary Outlet Thread Pitch: | 1 mm |
| Rearward Outlet Size: | M10 X 1.0 |
| Reservoir Included: | Yes |
| Secondary Outlet Thread Diameter: | M10 X 1.0 |
| Sensor Included: | Yes |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 4702842030 | TOYOTA |
| 472010R070 | TOYOTA |
| 47201-42340 | TOYOTA |
