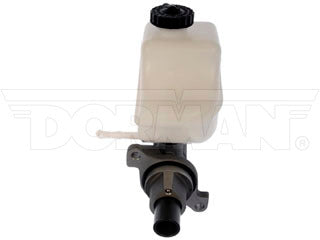

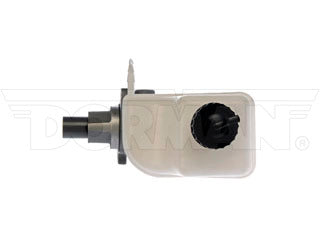

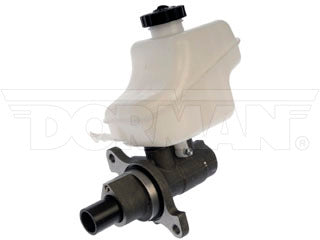

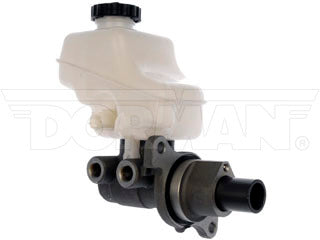

Dorman M630610 Master Cylinder
Regular price
$94.12
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2019 | Chrysler | 300 | |||
| 2019 | Dodge | Challenger | |||
| 2019 | Dodge | Charger | |||
| 2018 | Chrysler | 300 | |||
| 2018 | Dodge | Challenger | |||
| 2018 | Dodge | Charger | |||
| 2017 | Chrysler | 300 | |||
| 2017 | Dodge | Challenger | |||
| 2017 | Dodge | Charger | |||
| 2016 | Chrysler | 300 | |||
| 2016 | Dodge | Challenger | Bore: 1.0625 In. | ||
| 2016 | Dodge | Charger | Bore: 1.0625 In. | ||
| 2015 | Chrysler | 300 | Bore: 1.0625 In. | ||
| 2015 | Dodge | Challenger | Bore: 1.0625 In. | ||
| 2015 | Dodge | Charger | Bore: 1.0625 In. | ||
| 2014 | Chrysler | 300 | Bore: 1.0625 In. | ||
| 2014 | Dodge | Challenger | Bore: 1.0625 In. | ||
| 2014 | Dodge | Charger | Bore: 1.0625 In. | ||
| 2013 | Chrysler | 300 | Bore: 1.0625 In. | ||
| 2013 | Dodge | Challenger | Bore: 1.0625 In. | ||
| 2013 | Dodge | Charger | Bore: 1.0625 In. | ||
| 2012 | Chrysler | 300 | Bore: 1.0625 In. | ||
| 2012 | Dodge | Challenger | Bore: 1.0625 In. | ||
| 2012 | Dodge | Charger | Bore: 1.0625 In. | ||
| 2011 | Chrysler | 300 | Bore: 1.0625 In. | ||
| 2011 | Dodge | Challenger | Bore: 1.0625 In. | ||
| 2011 | Dodge | Charger | Bore: 1.0625 In. | ||
| 2010 | Chrysler | 300 | Performance Brakes; Bore: 1.0625 In. | ||
| 2010 | Dodge | Charger | 4-Wheel ABS | Performance Brakes; Bore: 1.0625 In. | |
| 2010 | Dodge | Charger | Non-ABS | Heavy Duty Brakes; Bore: 1.0625 In. | |
| 2009 | Chrysler | 300 | Performance Brakes; Bore: 1.0625 In. | ||
| 2009 | Dodge | Charger | 4-Wheel ABS | Performance Brakes; Bore: 1.0625 In. | |
| 2009 | Dodge | Charger | Non-ABS | Heavy Duty Brakes; Bore: 1.0625 In. |
Product Specifications
| Master Cylinder Bore Diameter: | 1.063 in |
|---|---|
| Master Cylinder Material: | Aluminum |
| Mounting Hardware Included: | No |
| Number of Outlets: | 2 |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Primary Outlet Thread Pitch: | 1.5 mm |
| Rearward Outlet Size: | M14 x 1.5 |
| Reservoir Included: | Yes |
| Secondary Outlet Thread Diameter: | M14 x 1.5 |
| Sensor Included: | Yes |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 68048551AA | CHRYSLER |
| 68048551AB | CHRYSLER |
