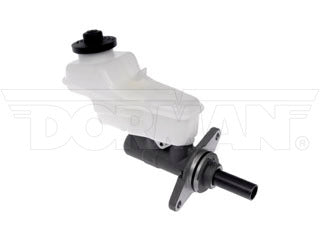

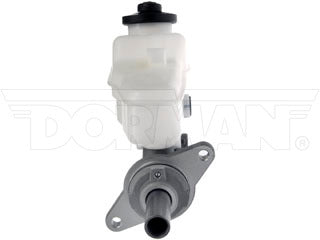

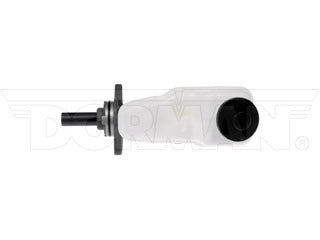

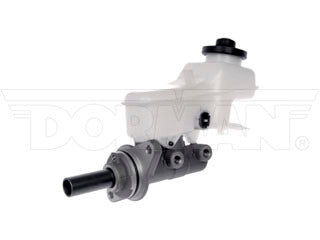

Dorman M630660 Master Cylinder
Regular price
$91.02
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2011 | Toyota | Matrix | FWD; Base Submodel | wo/Vehicle Stability Control; To 12/10 | |
| 2011 | Toyota | Matrix | FWD; L Submodel | wo/Vehicle Stability Control; To 12/10 | |
| 2010 | Toyota | Matrix | FWD; S Submodel | wo/Vehicle Stability Control | |
| 2010 | Toyota | Matrix | FWD; XR Submodel | wo/Vehicle Stability Control | |
| 2009 | Toyota | Corolla | wo/Vehicle Stability Control; To 1/09 | ||
| 2009 | Toyota | Matrix | FWD; Base Submodel | wo/Vehicle Stability Control; From 3/09 | |
| 2009 | Toyota | Matrix | FWD; XR Submodel | wo/Vehicle Stability Control; From 3/09 | |
| 2008 | Toyota | Matrix | L4 1.8L (1794cc) | Built in Japan; wo/Vehicle Stability Control; To 1/08 |
Product Specifications
| Master Cylinder Bore Diameter: | 0.813 in |
|---|---|
| Master Cylinder Material: | Aluminum |
| Mounting Hardware Included: | No |
| Number of Outlets: | 2 |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Primary Outlet Thread Pitch: | 1 mm |
| Rearward Outlet Size: | M10 X 1.0 |
| Reservoir Included: | Yes |
| Secondary Outlet Thread Diameter: | M10 X 1.0 |
| Sensor Included: | Yes |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 47201-02491 | TOYOTA |
| 47201-12B20 | TOYOTA |
