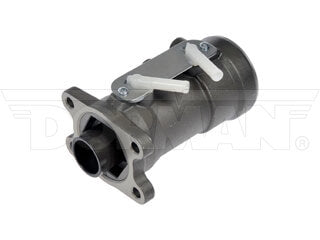

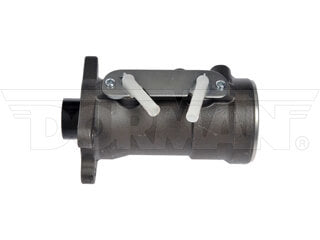

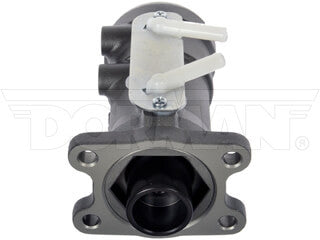

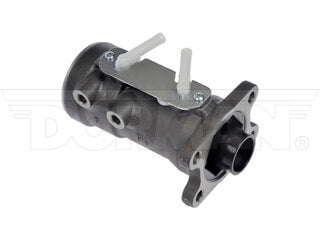

Dorman M630794 Master Cylinder
Regular price
$96.21
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2007 | Chevrolet | W4500 Tiltmaster | GAS | Bore: 1.375 In. | |
| 2007 | GMC | W4500 Forward | GAS | Bore: 1.375 In. | |
| 2007 | Isuzu | NPR-HD | GAS | Bore: 1.375 In. | |
| 2006 | Chevrolet | W4500 Tiltmaster | GAS | Bore: 1.375 In. | |
| 2006 | GMC | W4500 Forward | GAS | Bore: 1.375 In. | |
| 2006 | Isuzu | NPR-HD | GAS | Bore: 1.375 In. | |
| 2005 | Chevrolet | W4500 Tiltmaster | GAS | Bore: 1.375 In. | |
| 2005 | GMC | W4500 Forward | GAS | Bore: 1.375 In. | |
| 2005 | Isuzu | NPR-HD | GAS | Bore: 1.375 In. | |
| 2004 | Chevrolet | W4500 Tiltmaster | GAS | Bore: 1.375 In. | |
| 2004 | GMC | W4500 Forward | GAS | Bore: 1.375 In. | |
| 2004 | Isuzu | NPR-HD | GAS | Bore: 1.375 In. | |
| 2003 | Chevrolet | W4500 Tiltmaster | GAS | Bore: 1.375 In. | |
| 2003 | GMC | W4500 Forward | GAS | Bore: 1.375 In. | |
| 2003 | Isuzu | NPR-HD | GAS | Bore: 1.375 In. | |
| 2002 | Chevrolet | W4500 Tiltmaster | GAS | Bore: 1.375 In.; From 10/01/01 | |
| 2002 | GMC | W4500 Forward | GAS | Bore: 1.375 In.; From 10/01/01 | |
| 2002 | Isuzu | NPR-HD | GAS | Bore: 1.375 In.; From 10/01/01 | |
| 1998 | Isuzu | NPR-HD | Bore: 1.375 In.; Class 5; Gasoline Engine; 16,000 to 19,500 Lb. GVW |
Product Specifications
| Brake Booster Included: | Yes |
|---|---|
| Master Cylinder Bore Diameter: | 1-3/8 in |
| Master Cylinder Cap Included: | No |
| Master Cylinder Material: | Aluminum |
| Mounting Bracket Included: | No |
| Mounting Hardware Included: | No |
| Mounting Hole Quantity: | 4 |
| Number of Outlets: | 2 |
| Package Contents: | Master Cylinder; Bleeder Kit |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Primary Outlet Thread Pitch: | 1 mm |
| Push Rod Included: | No |
| Rearward Outlet Size: | M10 X 1.0 |
| Reservoir Included: | No |
| Reservoir Type: | Single |
| Secondary Outlet Thread Diameter: | M12 X 1.0 |
| Sensor Included: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 8-97315-167-0 | ISUZU |
| 97315167 | GENERAL MOTORS |
