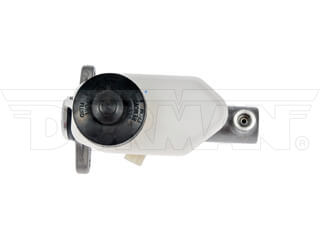

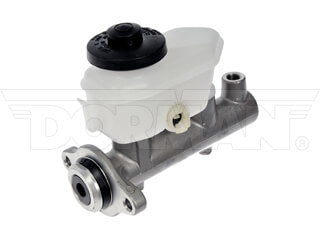

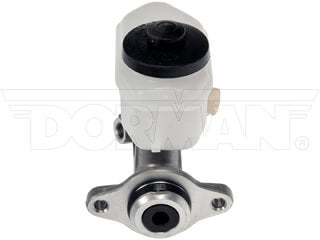

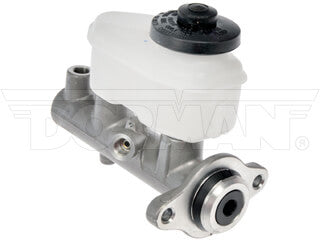

Dorman M630860 Master Cylinder
Regular price
$106.95
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2012 | Nissan | NV2500 | V6 4.0L (3954cc) | ||
| 2012 | Nissan | NV2500 | V8 5.6L (5552cc) | Standard Roof | |
| 2003 | Toyota | Solara | Traction Control; Bore: 1 In. | ||
| 2002 | Toyota | Solara | Traction Control; Bore: 1 In. | ||
| 2001 | Lexus | ES300 | Traction Control; wo/Stability Control; Bore: 1 In. | ||
| 2001 | Toyota | Camry | 4-Wheel ABS | Traction Control; Bore: 1 In. | |
| 2001 | Toyota | Solara | Traction Control; Bore: 1 In. | ||
| 2000 | Toyota | Camry | 4-Wheel ABS | Built in U.S.A.; Traction Control; Bore: 1 In. | |
| 2000 | Toyota | Solara | Traction Control; Bore: 1 In. |
Product Specifications
| Brake Booster Included: | Yes |
|---|---|
| Master Cylinder Bore Diameter: | 15/16 in |
| Master Cylinder Cap Included: | Yes |
| Master Cylinder Material: | Aluminum |
| Mounting Bracket Included: | No |
| Mounting Hardware Included: | No |
| Mounting Hole Quantity: | 2 |
| Number of Outlets: | 2 |
| Package Contents: | Master Cylinder; Bleeder Kit |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Primary Outlet Thread Pitch: | 1 mm |
| Push Rod Included: | No |
| Rearward Outlet Size: | M12 X 1.0 |
| Reservoir Included: | Yes |
| Reservoir Type: | Single |
| Secondary Outlet Thread Diameter: | M12 X 1.0 |
| Sensor Included: | Yes |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 47201-33180 | TOYOTA |
| 47201-33210 | TOYOTA |
