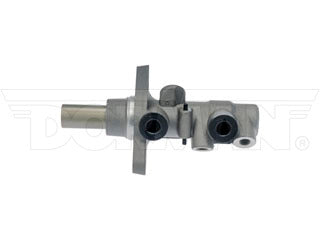

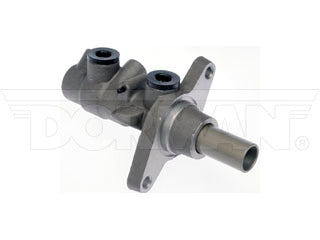

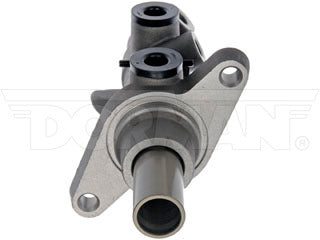

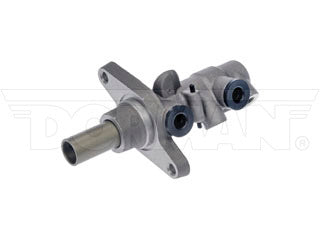

Dorman M630866 Master Cylinder
Regular price
$88.90
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2019 | Audi | Q3 | 345 mm Rotor | ||
| 2018 | Audi | Q3 | 345 mm Rotor | ||
| 2018 | Audi | Q3 Quattro | 345 mm Rotor | ||
| 2018 | Volkswagen | Tiguan Limited | |||
| 2017 | Audi | Q3 | 345 mm Rotor | ||
| 2017 | Audi | Q3 Quattro | 345 mm Rotor | ||
| 2017 | Volkswagen | CC | AWD | ||
| 2017 | Volkswagen | Tiguan | |||
| 2016 | Audi | Q3 | 345 mm Rotor | ||
| 2016 | Audi | Q3 Quattro | 345 mm Rotor | ||
| 2016 | Volkswagen | CC | AWD | ||
| 2016 | Volkswagen | Tiguan | |||
| 2015 | Audi | Q3 | 345 mm Rotor | ||
| 2015 | Audi | Q3 Quattro | 345 mm Rotor | ||
| 2015 | Volkswagen | CC | Option Code 1LA, 1LB, or 1ZM | ||
| 2015 | Volkswagen | Tiguan | |||
| 2014 | Audi | Q3 Quattro (Mexico) | 345 mm Rotor | ||
| 2014 | Volkswagen | CC | AWD | ||
| 2014 | Volkswagen | Tiguan | |||
| 2013 | Audi | Q3 Quattro (Mexico) | 345 mm Rotor | ||
| 2013 | Volkswagen | CC | AWD | ||
| 2013 | Volkswagen | Tiguan | AWD | ||
| 2013 | Volkswagen | Tiguan | FWD | ||
| 2012 | Volkswagen | CC | AWD | ||
| 2012 | Volkswagen | Tiguan | AWD | ||
| 2012 | Volkswagen | Tiguan | FWD | ||
| 2011 | Volkswagen | CC | AWD | ||
| 2011 | Volkswagen | Tiguan | AWD | ||
| 2011 | Volkswagen | Tiguan | FWD | ||
| 2010 | Volkswagen | CC | AWD | ||
| 2010 | Volkswagen | Passat | AWD | ||
| 2010 | Volkswagen | Passat CC | AWD | ||
| 2010 | Volkswagen | Tiguan | AWD | ||
| 2010 | Volkswagen | Tiguan | FWD | ||
| 2009 | Volkswagen | CC | AWD | ||
| 2009 | Volkswagen | Passat | AWD | ||
| 2009 | Volkswagen | Passat CC | AWD | ||
| 2009 | Volkswagen | Tiguan | AWD | ||
| 2009 | Volkswagen | Tiguan | FWD | ||
| 2008 | Volkswagen | Passat | AWD | ||
| 2007 | Volkswagen | Passat | AWD | ||
| 2006 | Volkswagen | Passat | AWD |
Product Specifications
| Master Cylinder Bore Diameter: | 0.938 in |
|---|---|
| Master Cylinder Material: | Aluminum |
| Mounting Hardware Included: | No |
| Number of Outlets: | 2 |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Primary Outlet Thread Pitch: | 1 mm |
| Rearward Outlet Size: | M12 X 1.0 |
| Reservoir Included: | No |
| Secondary Outlet Thread Diameter: | M12 X 1.0 |
| Sensor Included: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 3C1 614 019C | VOLKSWAGEN |
| 3C1 614 019E | VOLKSWAGEN |
