Dorman Products

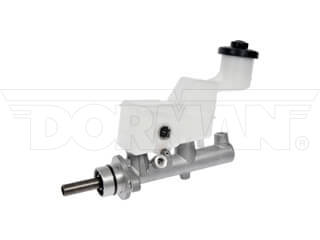

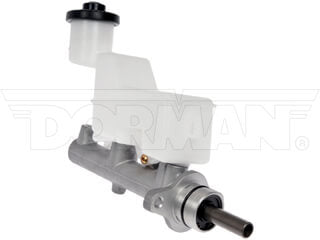

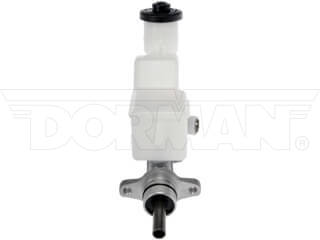

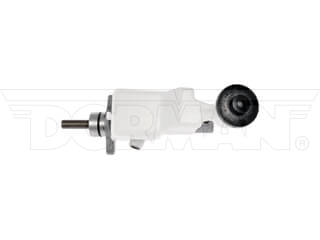

Dorman M630903 Master Cylinder

In stock
SKU: 591|M630903
$90.33

Product details

  • SKU 591|M630903
  • Barcode 885484843325

Share this item!

Description

Product Description

This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.

  • Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
  • Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
  • 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
  • Strict specifications - made to meet rigorous SAE International standards

Detailed Applications

Year Make Model Configuration Positions Application Notes
2008 Pontiac Vibe 4-Wheel ABS; Automatic Trans. w/RPO Code JL4 (Active Brake Control)
2008 Toyota Corolla 4-Wheel ABS; Automatic Trans. To 1/08; w/Vehicle Stability Control
2008 Toyota Matrix 4-Wheel ABS; Automatic Trans. Built in U.S.A.; To 1/08; w/Vehicle Stability Control
2007 Pontiac Vibe 4-Wheel ABS; Automatic Trans. w/RPO Code JL4 (Active Brake Control)
2007 Toyota Corolla w/Vehicle Stability Control
2007 Toyota Matrix 4-Wheel ABS; FWD; Base Submodel; Automatic Trans. w/Vehicle Stability Control
2007 Toyota Matrix 4-Wheel ABS; FWD; XR Submodel; Automatic Trans. w/Vehicle Stability Control
2006 Pontiac Vibe 4-Wheel ABS; FWD; Base Submodel; Automatic Trans. w/RPO Code JL4 (Active Brake Control)
2006 Toyota Corolla w/Vehicle Stability Control
2006 Toyota Matrix 4-Wheel ABS; FWD; Base Submodel; Automatic Trans. w/Vehicle Stability Control
2006 Toyota Matrix 4-Wheel ABS; FWD; XR Submodel; Automatic Trans. w/Vehicle Stability Control
2005 Pontiac Vibe 4-Wheel ABS; FWD; Base Submodel; Automatic Trans. w/RPO Code JL4 (Active Brake Control)
2005 Toyota Corolla w/Vehicle Stability Control
2005 Toyota Matrix 4-Wheel ABS; FWD; Base Submodel; Automatic Trans. w/Vehicle Stability Control
2005 Toyota Matrix 4-Wheel ABS; FWD; XR Submodel; Automatic Trans. w/Vehicle Stability Control

Product Specifications

Brake Booster Included: Yes
Master Cylinder Bore Diameter: 13/16 in
Master Cylinder Cap Included: Yes
Master Cylinder Material: Aluminum
Mounting Bracket Included: No
Mounting Hardware Included: No
Mounting Hole Quantity: 2
Number of Outlets: 2
Package Contents: Master Cylinder; Bleeder Kit
Package Quantity: 1
Packaging Type: Box
Primary Outlet Thread Pitch: 1 mm
Push Rod Included: No
Rearward Outlet Size: M10 X 1.0
Reservoir Included: Yes
Reservoir Type: Single
Secondary Outlet Thread Diameter: M12 X 1.0
Sensor Included: Yes

OE Numbers

DIRECT OE CROSS
47201-02340 TOYOTA
88973960 GENERAL MOTORS
