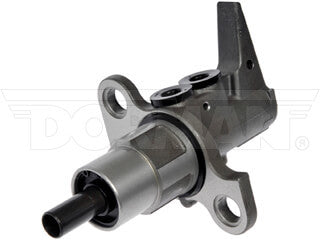

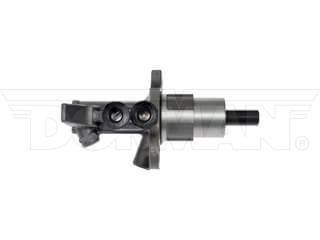

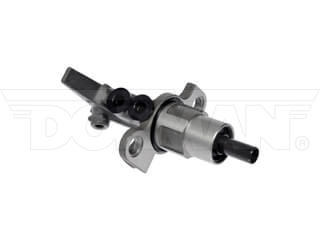

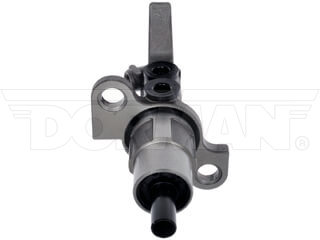

Dorman M630936 Master Cylinder
Regular price
$103.44
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2017 | Audi | A4 allroad | Armored Body; Girling-TRW Cylinder | ||
| 2017 | Audi | A5 Quattro | Convertible | From VIN FH-H-000 001 | |
| 2017 | Audi | S5 | Convertible | From VIN FH-H-000 001 | |
| 2016 | Audi | A4 allroad | Armored Body; Girling-TRW Cylinder | ||
| 2016 | Audi | A5 (Mexico) | |||
| 2016 | Audi | A5 Quattro | |||
| 2016 | Audi | allroad | Armored Car | ||
| 2016 | Audi | S5 | |||
| 2015 | Audi | A4 | |||
| 2015 | Audi | A4 allroad | Armored Body; Girling-TRW Cylinder | ||
| 2015 | Audi | A4 Quattro | |||
| 2015 | Audi | A5 (Mexico) | |||
| 2015 | Audi | A5 Quattro | |||
| 2015 | Audi | allroad | Armored Car | ||
| 2015 | Audi | S4 | |||
| 2015 | Audi | S5 | |||
| 2014 | Audi | A4 | |||
| 2014 | Audi | A4 allroad | Armored Body; Girling-TRW Cylinder | ||
| 2014 | Audi | A4 Quattro | |||
| 2014 | Audi | A5 | |||
| 2014 | Audi | A5 Quattro | |||
| 2014 | Audi | A6 | Right Hand Drive (RHD) | ||
| 2014 | Audi | A6 Quattro | Right Hand Drive (RHD) | ||
| 2014 | Audi | A7 Quattro | Right Hand Drive (RHD) | ||
| 2014 | Audi | allroad | Armored Car | ||
| 2014 | Audi | S4 | |||
| 2014 | Audi | S5 | |||
| 2014 | Audi | S6 | Right Hand Drive (RHD) | ||
| 2014 | Audi | S7 | Right Hand Drive (RHD) | ||
| 2013 | Audi | A4 | |||
| 2013 | Audi | A4 allroad | Armored Body; Girling-TRW Cylinder | ||
| 2013 | Audi | A4 Quattro | |||
| 2013 | Audi | A5 | |||
| 2013 | Audi | A5 Quattro | |||
| 2013 | Audi | A6 | Right Hand Drive (RHD) | ||
| 2013 | Audi | A6 Quattro | Right Hand Drive (RHD) | ||
| 2013 | Audi | A7 Quattro | Right Hand Drive (RHD) | ||
| 2013 | Audi | allroad | Armored Car | ||
| 2013 | Audi | S4 | |||
| 2013 | Audi | S5 | |||
| 2013 | Audi | S6 | Right Hand Drive (RHD) | ||
| 2013 | Audi | S7 | Right Hand Drive (RHD) | ||
| 2012 | Audi | A6 | Right Hand Drive (RHD) | ||
| 2012 | Audi | A6 Quattro | Right Hand Drive (RHD) | ||
| 2012 | Audi | A7 Quattro | Right Hand Drive (RHD) |
Product Specifications
| Master Cylinder Bore Diameter: | 1 in |
|---|---|
| Master Cylinder Material: | Cast Iron |
| Mounting Hardware Included: | No |
| Number of Outlets: | 2 |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Primary Outlet Thread Pitch: | 1 mm |
| Rearward Outlet Size: | M12 X 1.0 |
| Reservoir Included: | No |
| Reservoir Type: | Single |
| Secondary Outlet Thread Diameter: | M12 X 1.0 |
| Sensor Included: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 4G2 611 021A | VOLKSWAGEN |
| 4G2611021 | VOLKSWAGEN |
