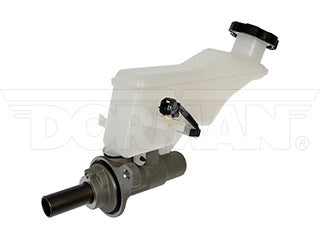

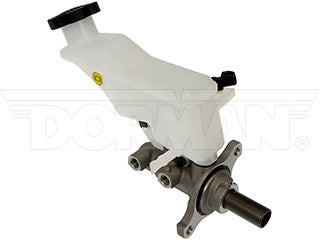

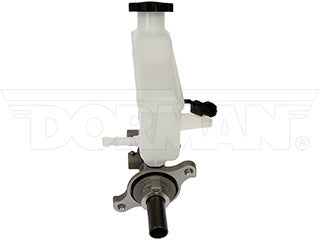

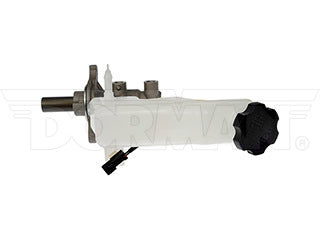

Dorman M631084 Master Cylinder
Regular price
$159.00
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2020 | Hyundai | Tucson | |||
| 2017 | Hyundai | Tucson | Base Submodel | ||
| 2017 | Hyundai | Tucson | Eco Submodel | ||
| 2017 | Hyundai | Tucson | GLS Premium Submodel | ||
| 2017 | Hyundai | Tucson | GLS Submodel | ||
| 2017 | Hyundai | Tucson | Limited Submodel | ||
| 2017 | Hyundai | Tucson | Luxury Submodel | ||
| 2017 | Hyundai | Tucson | Premium Submodel | ||
| 2017 | Hyundai | Tucson | SE Submodel | ||
| 2017 | Hyundai | Tucson | Sport Submodel | ||
| 2017 | Hyundai | Tucson | Ultimate Submodel | ||
| 2016 | Hyundai | Tucson |
Product Specifications
| Bleeder Hoses Included: | No |
|---|---|
| Bore Size: | 22.23 mm |
| Bore Type: | Straight |
| Brake Booster Included: | No |
| Dust Boot Included: | No |
| Gasket Or Seal Included: | Yes |
| Master Cylinder Bore Diameter: | 22.23 mm |
| Master Cylinder Cap Included: | Yes |
| Master Cylinder Material: | Zinc; Plastic; Rubber; Steel |
| Mounting Bracket Included: | No |
| Mounting Hardware Included: | No |
| Mounting Hole Quantity: | 2 |
| Number of Outlets: | 2 |
| Outlet Type: | Threaded |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Piston Quantity: | 2 |
| Port Quantity: | 2 |
| Primary Outlet Thread Diameter: | 12 mm |
| Primary Outlet Threads Per Inch: | 1 |
| Push Rod Included: | No |
| Rearward Outlet Size: | M12 X 1.0 |
| Reservoir Included: | Yes |
| Reservoir Material: | Plastic |
| Reservoir Type: | Single |
| Secondary Outlet Thread Diameter: | 12 mm |
| Secondary Outlet Threads Per Inch: | 1 |
| Sensor Included: | Yes |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 58510D3100 | HYUNDAI |
