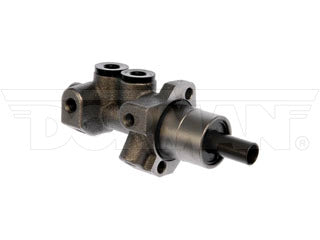

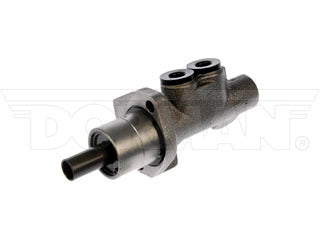

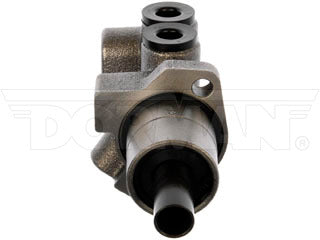

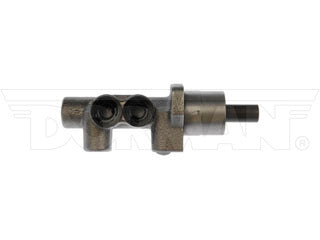

Dorman M639011 Master Cylinder
Regular price
$49.41
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2010 | Chevrolet | C2 | Mexico Region | Bore: 13/16 In. | |
| 2009 | Chevrolet | C2 | Mexico Region | Bore: 13/16 In. | |
| 2009 | Chevrolet | Chevy (Mexico) | Mexico Region | Built in Brazil; Bore: 13/16 In. | |
| 2008 | Chevrolet | C2 | Mexico Region | Bore: 13/16 In. | |
| 2008 | Chevrolet | Chevy (Mexico) | Mexico Region | Built in Brazil; Bore: 13/16 In. | |
| 2007 | Chevrolet | C2 | Mexico Region | Bore: 13/16 In. | |
| 2007 | Chevrolet | Chevy (Mexico) | Mexico Region | Built in Brazil; Bore: 13/16 In. | |
| 2006 | Chevrolet | C2 | Mexico Region | Bore: 13/16 In. | |
| 2006 | Chevrolet | Chevy (Mexico) | Mexico Region | Built in Brazil; Bore: 13/16 In. | |
| 2005 | Chevrolet | C2 | Mexico Region | Bore: 13/16 In. | |
| 2005 | Chevrolet | Chevy (Mexico) | Mexico Region | Built in Brazil; Bore: 13/16 In. | |
| 2004 | Chevrolet | C2 | Mexico Region | Bore: 13/16 In. | |
| 2004 | Chevrolet | Chevy (Mexico) | Mexico Region | Built in Brazil; Bore: 13/16 In. | |
| 2003 | Chevrolet | Chevy (Mexico) | Mexico Region | Built in Brazil; Bore: 13/16 In. | |
| 2003 | Chevrolet | Chevy Pickup (Mexico) | Mexico Region | Bore: 13/16 In. | |
| 2002 | Chevrolet | Chevy (Mexico) | Mexico Region | Built in Brazil; Bore: 13/16 In. | |
| 2002 | Chevrolet | Chevy Pickup (Mexico) | Mexico Region | Bore: 13/16 In. | |
| 2001 | Chevrolet | Chevy (Mexico) | Mexico Region | Built in Brazil; Bore: 13/16 In. | |
| 2001 | Chevrolet | Chevy Pickup (Mexico) | Mexico Region | Bore: 13/16 In. | |
| 2000 | Chevrolet | Chevy (Mexico) | Mexico Region | Built in Brazil; Bore: 13/16 In. | |
| 2000 | Chevrolet | Chevy Pickup (Mexico) | Mexico Region | Bore: 13/16 In. | |
| 1999 | Chevrolet | Chevy (Mexico) | Mexico Region | Built in Brazil; Bore: 13/16 In. | |
| 1999 | Chevrolet | Chevy Pickup (Mexico) | Mexico Region | Bore: 13/16 In. | |
| 1998 | Chevrolet | Chevy (Mexico) | Mexico Region | Built in Brazil; Bore: 13/16 In. |
Product Specifications
| Master Cylinder Bore Diameter: | 0.813 in |
|---|---|
| Master Cylinder Material: | Cast Iron |
| Mounting Hardware Included: | No |
| Number of Outlets: | 4 |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Primary Outlet Thread Pitch: | 1 mm |
| Rearward Outlet Size: | M10 X 1.0 |
| Reservoir Included: | No |
| Secondary Outlet Thread Diameter: | M12 X 1.0 |
| Sensor Included: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 93289332 | GENERAL MOTORS |
