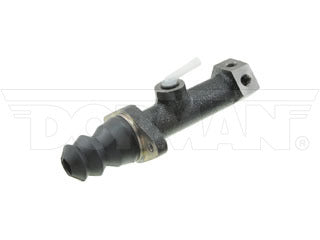

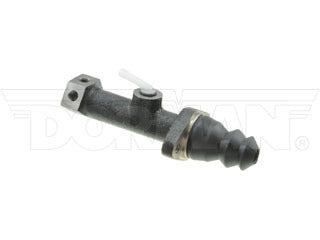

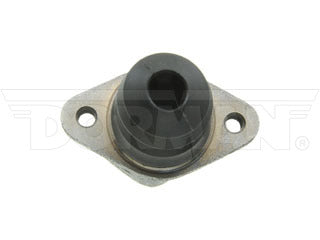

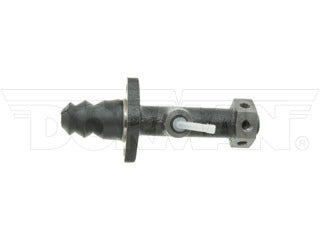

Dorman M90547 Master Cylinder
Regular price
$28.44
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 1977 | Volkswagen | Beetle | Manual Brakes; Front Drum Brakes | 2 Piston Caliper | |
| 1970 | Volkswagen | Beetle | Bore: 11/16 In.; w/Manual Brakes; w/Single Hydraulic System | ||
| 1969 | Volkswagen | Beetle | Bore: 11/16 In.; w/Manual Brakes; w/Single Hydraulic System | ||
| 1968 | Volkswagen | Beetle | Bore: 11/16 In.; w/Manual Brakes; w/Single Hydraulic System | ||
| 1967 | Volkswagen | Beetle | Bore: 11/16 In.; w/Manual Brakes; w/Single Hydraulic System | ||
| 1966 | Volkswagen | Beetle | Bore: 11/16 In.; w/Manual Brakes | ||
| 1966 | Volkswagen | Karmann Ghia | Bore: 11/16 In.; w/Manual Brakes | ||
| 1965 | Volkswagen | Beetle | Bore: 11/16 In.; w/Manual Brakes | ||
| 1965 | Volkswagen | Karmann Ghia | Bore: 11/16 In.; w/Manual Brakes |
Product Specifications
| Master Cylinder Bore Diameter: | 0.688 in |
|---|---|
| Master Cylinder Material: | Cast Iron |
| Mounting Hardware Included: | No |
| Number of Outlets: | 3 |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Primary Outlet Thread Pitch: | 1 mm |
| Reservoir Included: | No |
| Secondary Outlet Thread Diameter: | M10 X 1.0 |
| Sensor Included: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 113 611 023B | VOLKSWAGEN |
