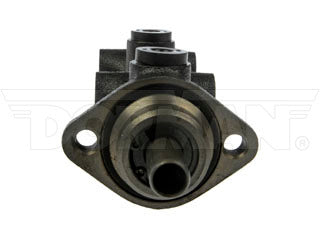

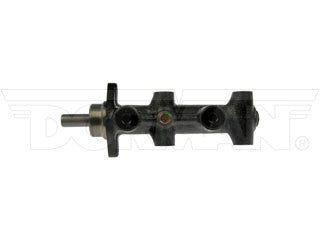

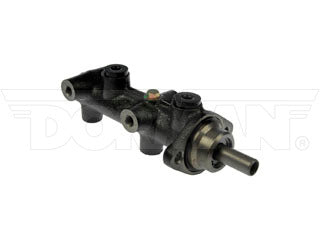

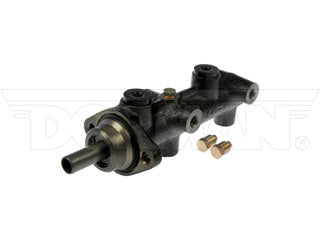

Dorman M96411 Master Cylinder
Regular price
$76.17
Couldn't load pickup availability
Product Description
This brake master cylinder is precision-engineered to match the design, function, and performance of the original master cylinder on specific vehicle years, makes and models. It is made of new, high-quality materials for a safe, durable replacement.
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 1981 | Volkswagen | Dasher | Bore: 13/16 In. | ||
| 1980 | Volkswagen | Dasher | Bore: 13/16 In. | ||
| 1979 | Volkswagen | Dasher | Bore: 13/16 In. | ||
| 1978 | Volkswagen | Dasher | Bore: 13/16 In. | ||
| 1977 | Volkswagen | Dasher | Bore: 13/16 In.; w/ATE Brake System; To Serial No. 352-2101-572 | ||
| 1977 | Volkswagen | Dasher | w/Bendix Brakes; Bore: 13/16 In. | ||
| 1976 | Audi | Fox | Manual Trans. | Bore: 13/16 In. | |
| 1976 | Volkswagen | Dasher | Bore: 13/16 In.; w/ATE Brake System; To Serial No. 352-2101-572 | ||
| 1976 | Volkswagen | Dasher | w/Bendix Brakes; Bore: 13/16 In. | ||
| 1975 | Audi | Fox | Automatic Trans. | Bore: 13/16 In.; To Serial No. 845-2050-198 | |
| 1975 | Audi | Fox | Manual Trans. | Bore: 13/16 In. | |
| 1975 | Volkswagen | Dasher | Bore: 13/16 In.; w/ATE Brake System; To Serial No. 352-2101-572 | ||
| 1975 | Volkswagen | Dasher | w/Bendix Brakes; Bore: 13/16 In. | ||
| 1974 | Audi | Fox | Bore: 13/16 In. | ||
| 1974 | Volkswagen | Dasher | Bore: 13/16 In.; w/ATE Brake System; To Serial No. 352-2101-572; w/Power Brakes | ||
| 1974 | Volkswagen | Dasher | w/Bendix Brakes; Bore: 13/16 In.; w/Power Brakes | ||
| 1973 | Audi | Fox | Bore: 13/16 In. |
Product Specifications
| Master Cylinder Bore Diameter: | 0.813 in |
|---|---|
| Master Cylinder Material: | Cast Iron |
| Mounting Hardware Included: | No |
| Number of Outlets: | M6 -1.0 |
| Package Contents: | Master Cylinder |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Primary Outlet Thread Pitch: | 1 mm |
| Rearward Outlet Size: | M10 X 1.0 |
| Reservoir Included: | No |
| Secondary Outlet Thread Diameter: | M10 X 1.0 |
| Sensor Included: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 321 611 019A | VOLKSWAGEN |
| 321 611 019E | VOLKSWAGEN |
| 839 611 021 | VOLKSWAGEN |
