Dorman T3094RD Front Left Steering Tie Rod End 91-06 Jeep Grand Cherokee
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$37.40
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.

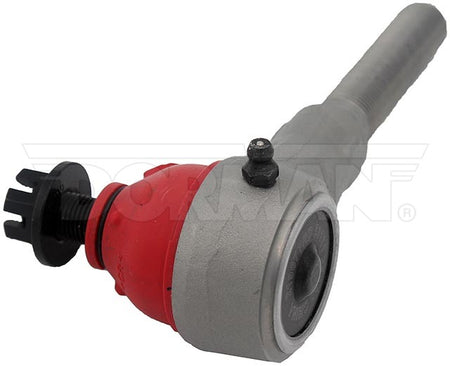

This rugged duty tie rod end is built for maximum load absorption and durability. Featuring a hardened ball stud with a highly polished ball, a serviceable integrated bearing, I.C.E. synthetic grease and premium corrosion resistance.
- Rugged-duty construction - this tie rod end is built with features to maximize absorption and durability for hard-working vehicles
- Superior ball stud - hardened ArmourGrade stud with large, highly polished ball
- Greaseable integrated bearing - serviceable IntegraFit bearing pre-loaded with I.C.E. synthetic grease
- Premium corrosion resistance - WeatherShield external coating to resist corrosion
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1991-2001 | Jeep | Cherokee | Front Left Outer | At Steering Arm |
| 1991-1992 | Jeep | Comanche | Front Left Outer | At Steering Arm |
| 1993-1998 | Jeep | Grand Cherokee | Front Left Outer | At Steering Arm; 4.0L L6 |
| 1997-2006 | Jeep | TJ | Front Left Outer | |
| 1997-2006 | Jeep | Wrangler | Front Left Outer | |
| 1991-1995 | Jeep | Wrangler |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | T3094RD |
| UPC | 889245930910 |
| Placement | Front, Left, Outer |
| Head Drive Type | Slotted |
| Length | 136 mm |
| Color | Black |
| Width | 51.07 mm |
| Type | Straight |
| Mounting Hardware Included | Yes |
| Height | 79.6 mm |
| Tube Diameter | 24 mm |
| Adjustable | Yes |
| Finish | Coated |
| Housing Material | Steel |
| Cone Outside Diameter | 14 mm |
| Bearing Material | Metal |
| Stud Type | Taper |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Grade Type | Standard Replacement |
| End 1 Thread Direction | Counterclockwise (Left) |
| End 2 Thread Direction | Clockwise (Right) |
| Dust Boot Material | Polychloroprene |
| Tie Rod Material | Steel |
| Bolts Included | No |
| Center Mount Hole Quantity | 0 |
| Center Mount Stud Quantity | 1 |
| End 1 Attachment Type | Threaded |
| End 1 Thread Diameter | 11/16 in |
| End 1 Thread Pitch | M18 |
| End 2 Thread Diameter | 1/2 in |
| End 2 Thread Pitch | M20 |
| End 2 Type | Taper |
| Material | Steel |
| Outside Diameter | 24 mm |
| Package Contents | 1 Tie Rod |
| Thread Pitch | M20 |
| Weight | 1.71 lb |
| Country of Origin | Thailand |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 52005741 | Chrysler (OE) |
|---|---|
| TA2236 | Interchange |
| MDS1312 | Interchange |
| MES3094L | Interchange |
| ES3094L | Interchange |
